Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

WESTINGHOUSE

GM 4-5A & 7A OCB

7811011040
Fig. 1

CRANK ARM CONTACT



7811011030

1576764

CRANK ARM SHUNT, GM-7A



7811011031



CRANK ARM SHUNT, GM-5A



7811012031





MOVING CONTACT, GM-4

Fig. 1

7811011040

20-B-5355-G-07

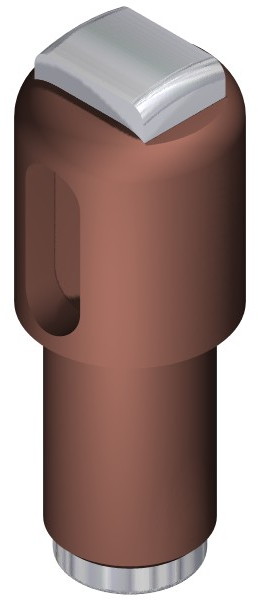

7811021013Fig. 2

MOVING CONTACT, GM-6A



7811011240



INTERMEDIATE CONTACT, GM-5A

Fig. 2

7811021013

516B470-G01

* BAFFLE FIBER BOLT, 3 ⅞" LONG, 5/8"-11, G-10



7811021014

 576762

LOWER CONTACT, 9 3/4" LONG



7811021025

701C618-G01





LOWER CONTACT, 12-1/4" LONG



7811021035



LOWER CONTACT, 9-3/4" LONG



7811021125



INTERMEDIATE CONTACT, GM-5A, 4” LONG



7811021133

302C596

230KV LOWER CONTACT, 14 ⅝" LONG



7811021145





* DE-ION GRID STACK ASSEMBLY, GM-7A



7811021100



7911440000
Fig. 3



GM-7A ARCING CONTACT



7811020000



INTERMEDIATE CONTACT, 4" LONG



7811021113

302C59 G02

*PISTON CONTACT

7811022010

 516B388 G04

GM-5C MICARTA SHIELD, 15 ╝” LONG   7811470000

* GM-5A DE-ION GRID STACK



7811034000



* GM-4S MICARTA SHIELD, 12” LONG



7811460000



GM 145/169 OCB







145-GMB-40 CONTACT ROD, 15 9/16" LONG



7911010120

2066C75G02

*145-GMB-40 DE-ION GRID STACK



7911044090



7901400000
Fig. 4

169-GM-50 MOVABLE LADDER LOWER CONTACT ROD, 12" LONG



7911010220

701C420G06

169-GM-50 UPPER STATIONARY CONTACT



7911010050



145-GMB-40 CONTACT FINGER



7911020150



* GM/GW BONDED GRID STACK

Fig. 3

7911440000

891D325-G02

* GM/GW BONDED GRID ASSY HARDWARE KIT 7911440050

* 150-DH LIFT ROD, 500A, 29 ╝” LONG, G-10



7961040008



NO LOAD TAP CHANGER

25 KV 2600A, 450 KV 1500A

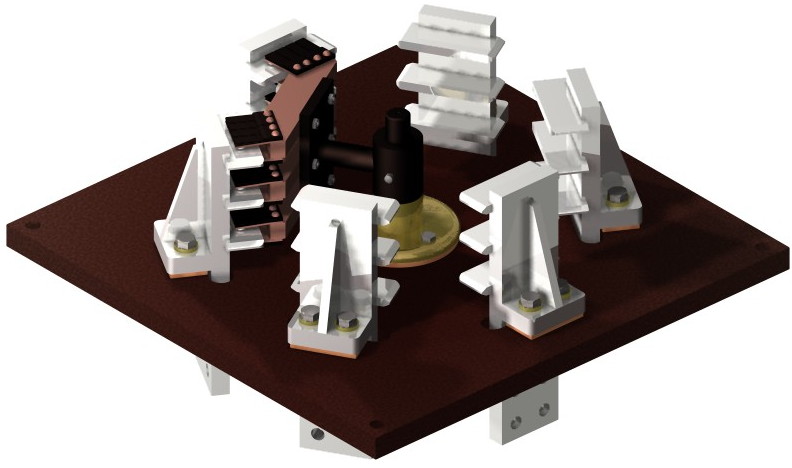

* NO-LOAD TAP CHANGER ASSY., 25KV, 2630A

Fig. 4

7901400000





* NO-LOAD TAP CHANGER ASSY., 6PT., 5 POSITION, 45KV, 1500A



7901500000





* NO-LOAD TAP CHANGER ASSY., 6PT., 3 POSITION, 45KV, 1500A



7901500001



NMC-Design 1
