Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

 WESTINGHOUSE

14.4 KV, 34.5 KV - 69 KV OCB, 460-G-1500, 690 G 2500





7221430012
Fig. 1

PARTS FOR 34.5 G 1500, SEE KIT PRINT #7221300000,&  7221400000
34.5 G 1500 SAFETY VALVE 175 PSI   7001350002 513A160 H04

34.5 G 1500 MOVABLE CONTACT, 12 5/8" WIDE



7221010030

 18-C-9843 G04

* 34.5 INTERRUPTER ASSY., PRE-1963



7221410000



34.5 G 1000/1500 INTERUPTER ASSEMBLY   7221430000 424D549 G03

* 34.5 G 1500 LIFT ARM, 2000A, 43 1/2” LONG, G-10



7221430010



* 34.5 G 1500 LIFT ARM ASSY., 2000A



7221430110



* 34.5 INTERRUPTER ASSY., POST-1963, 1000/1500A, 1200A



7221440000

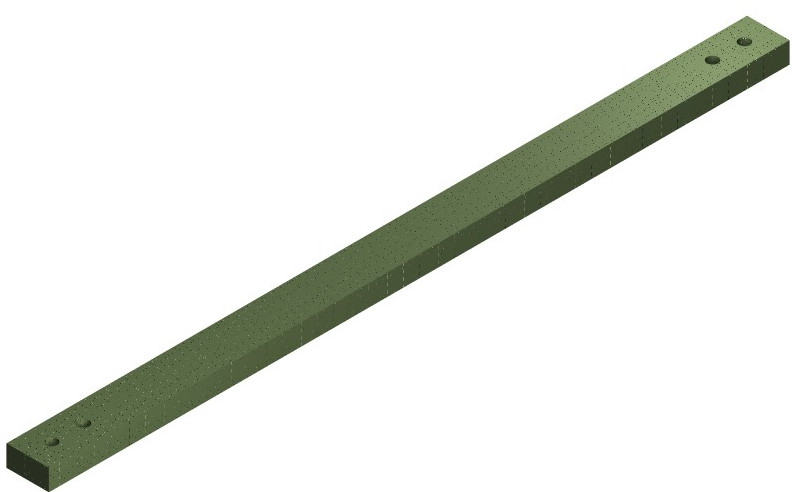

* 34.5 G 1500 LIFT ARM, 1200A, 34 7/8” LONG, G-10

Fig. 1

7221430012





* 34.5 G 1500 LIFT ARM ASSY., 1200A



7221430112



7221044000
Fig. 2

34.5 G 1500 RESISTOR ASSEMBLY



7801440000

29B4558 G06

690 G 2500 MOVABLE CONTACT, 15 1/8" WIDE



7721010020

324-C-WE-041-561

* 690 G 2500 LIFT ARM (G-10), 40 1/2" LONG



7721043005



* 690 G 2500 LIFT ROD ASSEMBLY



7721041212



* G05 BAFFLE TIE ROD, 16 ” LONG, G-10   7521420100


* 690 G 2500 BAFFLE TIE ROD, 15 3/8" LONG, G-10



7521420200



  460-G-1500 BAFFLE TIE ROD, 13 5/8” LONG   7521420300


 * 690 G 3500 LIFT ROD GUIDE, 24 1/2" LONG

Fig. 2

 7221044000





 15KV, 1200A MOVING ARCING CONTACT, 10 1/8” WIDE



7221010010

 18C9843 G03

  14.4 G 25KV, 1200A MOVING ARCING CONTACT, 11 1/8” WIDE   7221010011 18C9843 G07
  460 G 1500, 2000A MOVING ARCING CONTACT, 12-” WIDE   7221010020 18C9843 G05
  34.5 G 2500 15KV, 1200A MOVING ARCING CONTACT, 12 ” WIDE   7221010012 18C9843 G02
  460 G 1500, 1200A MOVING ARCING CONTACT, 12-” WIDE   7221010025 29B8692 G08
  460 G 1500, 1200A MOVING ARCING CONTACT, 12-” WIDE   7221010028 29B8692 G07
  044 TYPE 25KV, 2000A MOVING ARCING CONTACT, 14 1/8” WIDE   7221010040 18C9843 G06
  14.4 G 14.4KV, 2000/4000A MOVING ARCING CONTACT, 11-7/8” WIDE   7221010050 18C9843 G01

NMC-Design 1
