O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

WESTINGHOUSE

 GO-2, GO-2B, GO-2A, GO-4B, F-100, 230 G 500, B-22-B OCB



F-100 MOVABLE ARCING CONTACT, 11 1/8" WIDE



7711310215

850334

7231020020
Fig. 1

* F-100, B-22-B G02B ARCING HORN



7711321010

20C140 H02

850328-L TYPE F&G ARCING HORN   7711321015 20C140 H01
230-G-500 23KV, 1200A ARCING HORN   7711321011 20C0140 H08

* F-100 LIFT ROD ARM, 19 1/2" LONG, G-10



7711410005



* 230 G 500 BAFFLE STACK ASSY.



7231020000



230-6-500 23KV MOVABLE ARCING CONTACT   7231010000

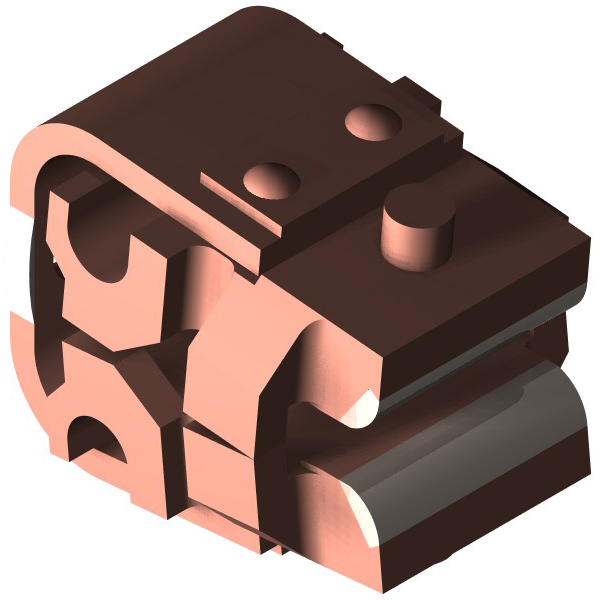

230 G 500 STATIONARY CONTACT

FIG. 1

7231020020





* 230 G 500 BAFFLE STACK



7231420010



  230-G ARCING BREAKER ASSEMBLY W/ BOLTS   7231044050
7701032000
Fig. 2

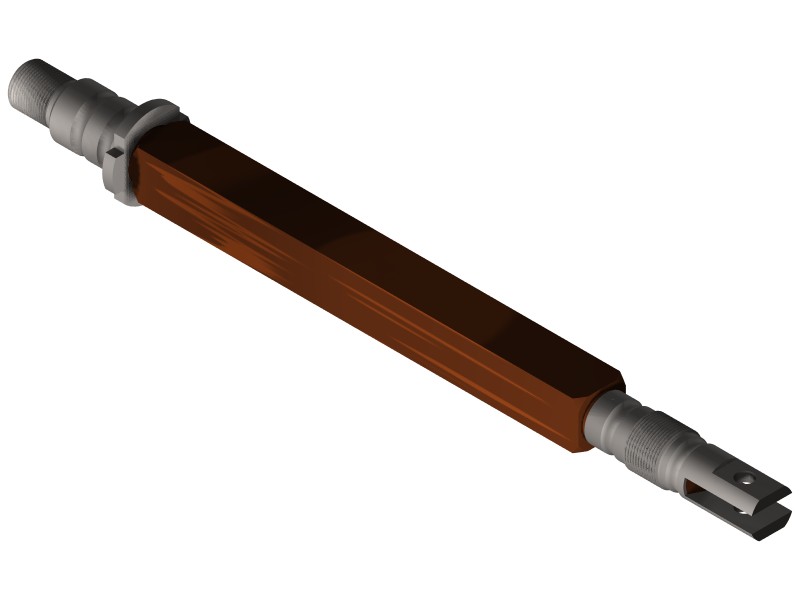

* B-22-B LIFT ROD ASSY, 22” LONG



7701031000



* B-22-B MOVABLE ARCING CONTACT, 8 7/8” WIDE



7701310015



B-28-B LIFT ROD ASSEMBLY, 23 5/8" LONG

 FIG. 2

7701032000



GO-2A MOVABLE ARCING CONTACT, 12 1/2" WIDE



7801310000

1073593

GO-2A STATIONARY CONTACT, 46/138KV, 600A



7801320016

1251187



GO-2 MOVABLE ARCING CONTACT, 23KV, 1200A, 9" WIDE



7801310015

 49B551B-7

7711040165
Fig. 3

GO-2B MOVABLE ARCING CONTACT, 8 7/8" WIDE



7711310015



* GO-2B STATIONARY FINGER CONTACT



7711321000

73C0971A01

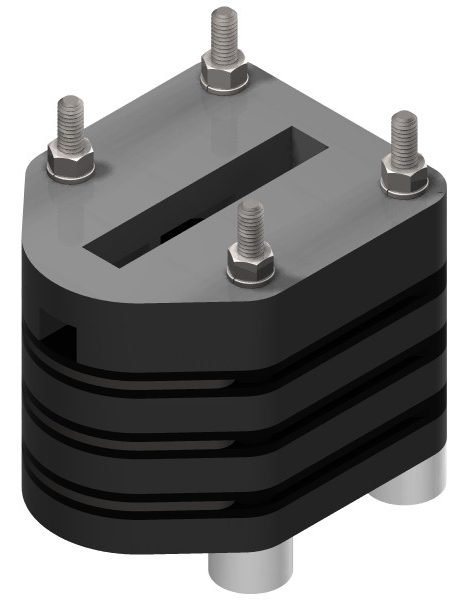

* GO-2B BAFFLE PLATE ASSY.

 FIG. 3

7711040165



* GO-2B STATIONARY CONTACT



7711323000



* GO-4B STATIONARY FINGER CONTACT, 34.5KV, 1200A



7721320000



MOVING ARCING CONTACT W/ BRACKET 14 3/16” WIDE   7721320115 5B9224 G05

* GO-4B MOVABLE ARCING CONTACT, 34.5KV, 1200A, 12-1/8" WIDE



7721320015

5B9224 G09

  GO-4B ARCING HORN,34.5 KV, POST 1963   7721320010 20C163 G03



* GO-4B BAFFLE STACK ASSY., 34.5KV, 1200A



7721420000

1400987

  GO-4B ARCING HORN, 34.5 KV, PRE 1963   7721320034 20C163 G01
  GO-3B MOVING ARCING CONTACT, 34.5 KV, 1200A, 11-3/8” WIDE   7721340020 172C257 G02
NMC-Design 1
