Normandy Machine Company, Inc. NORMANDY MACHINE CO. INC.
815 E. CHERRY ST., TROY, MISSOURI 63379
PHONE (314) 528-8913     (800) 526-6740
FAX (314) 528-8937    sales@normandymachine.com
Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

WESTINGHOUSE
(1000 Amp)

UTT, UTT-A, UTT-B



FOR PARTS FOR UTT, UTT-A, & UTT-B SEE KIT PRINT #7501000000 THRU 7501340000

7501440000Fig. 1

*UTT STORAGE/ SHIPPING TANK   7501051000

*UTT-UTT-B TAP LIFTING DEVICE



7501240004

2037C75G01

UTT-B SELECTOR SWITCH SHAFT



7501400005

 605A591 H03

UTT-B TRANSFER SWITCH SHAFT



7501400044

 5869D80 H03

UTT-B REVERSE SWITCH SHAFT



7501400555

 5869D80 H01

UTT-B PHASE BOARD ("A" & "B" PHASE)



7501421000

5708D55 H01

7501520000
 Fig. 2 7501520000

UTT-B PHASE BOARD ("C" PHASE)



7501420000

5708D55 H02

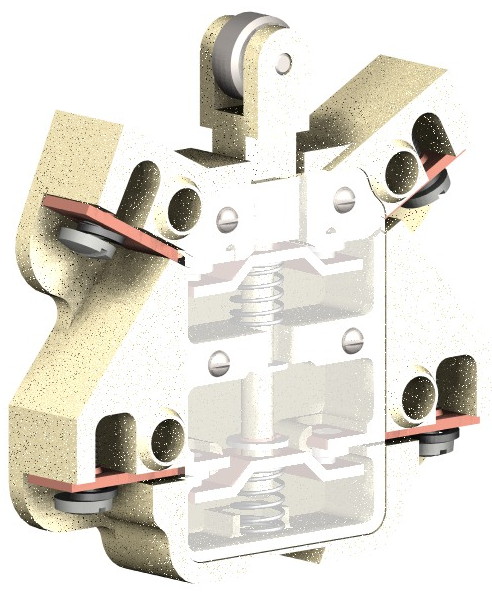

UTT, UTT-A LIMIT SWITCH, BEFORE 1970

Fig. 1

7501440000

62A5584-2
D0156802

FEED THRU BOARD, 500A W/ GASKET



7501440012

 224C909

FEED THRU BOARD [NEW STYLE], 1000A W/ GASKET



7501440014

 261D163 G01

*UTT HIGH CURRENT LEAD SET



7501450000



UTT LOW CURRENT LEAD SET   7501450500

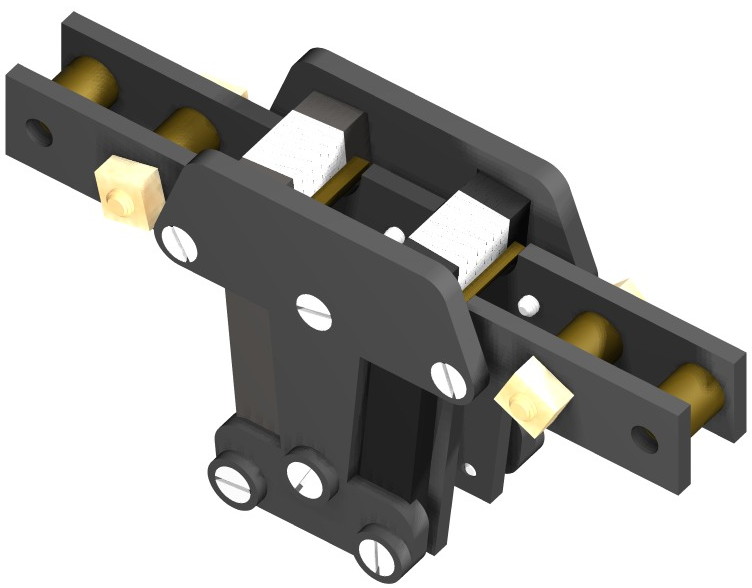

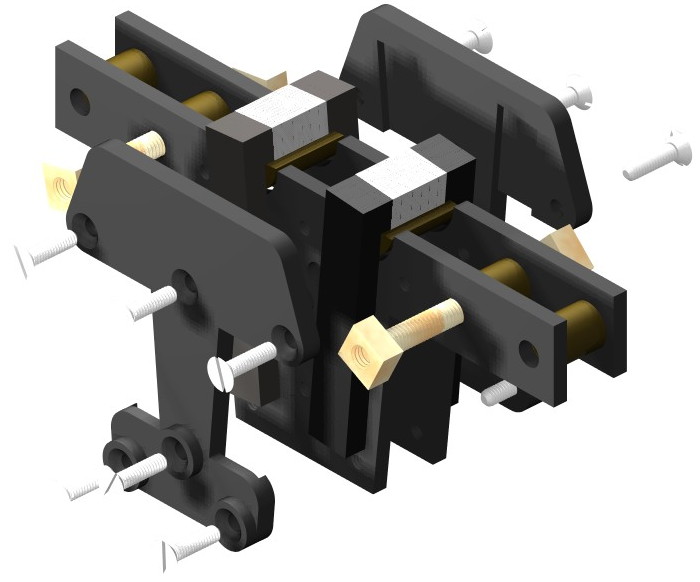

*ARC CHUTE ASSY.

Fig. 2

7501520000

475C870G01

UTT-B LIMIT SWITCH SET   7501446000

UTT-B LIMIT SWITCH STATIONARY



7501447000

25D6380G01

UTT-B LIMIT SWITCH, LEVEL TYPE



7501448000

25D6375G02

ROLLER CAM STOP



7501420101

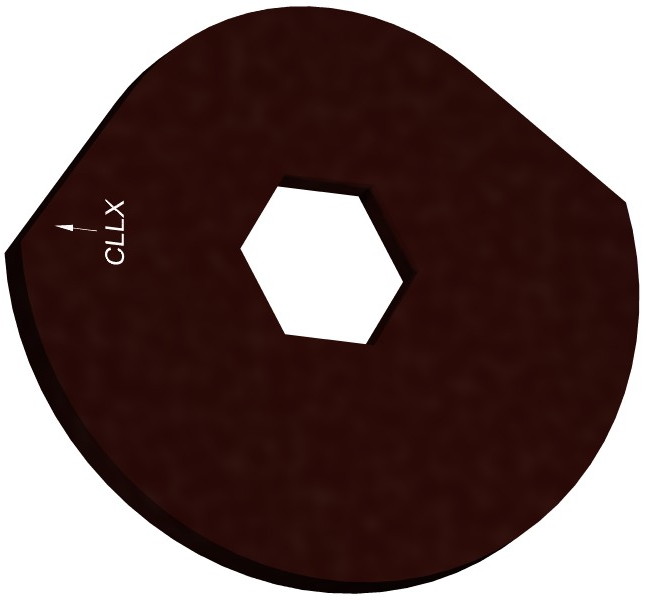

CLLX / LLX ROLLER CONTROL CAM



7501420234

 4156D03 H03

CLRX / LRX ROLLER CONTROL CAM



7501420235

4156D03 H02



LR / CLR ROLLER CONTROL CAM



7501420236

4156D03 H05



LL / CLL ROLLER CONTROL CAM



7501420237

4156D03 H06



120A / 120 ROLLER CONTROL CAM



7501420242

4156D03 H11

  *UTT UPGRADED CAM SWITCH BASE ASSEMBLY (REMANUFACTURED)



7502720150 5779D28 G05


UTT UPGRADED TO UTT-B W/ RMT-1 REMANUFACTURED LTC



7502400000

261A640H01



UTT-A70/ UTT-B REMANUFACTURED LTC



7502400002



UTT/UTT-A TO UTT-B REBULIT LTC



7502400003





UTT-A70/B W/ RMT-1 REVERSE REMANUFACTURED LTC



7502400004





* GITS SEAL REPLACEMENT BEARING



7501720100





MOTOR CAPACITOR



23185-C





UTT-B MOTOR W/ GEAR



23185-N




NMC-Design 1
