Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

WESTINGHOUSE
DS-206, UTH, GST, UT,  TDR, UZE

FOR PARTS FOR UTH SEE KIT PRINT #7531100000
FOR PARTS FOR UT/UNR SEE KIT PRINT #7631200000, #7631400000 & #7631050040



DS-206





MOVABLE MAIN CONTACT



7241010003



7261010066  Fig. 1

MOVABLE ARCING CONTACT



7241010005



STATIONARY MAIN CONTACT



7241020003



STATIONARY L/H ARCING CONTACT



7241020004



STATIONARY R/H ARCING CONTACT



7241020005



ABB UZE, UZERT







7261010067Fig. 2

FOR PARTS FOR UZE SEE KIT PRINT #7261200000 thru 7261700000

UZE CHANGE-OVER MOVABLE SHAFT

Fig. 1

7261010066

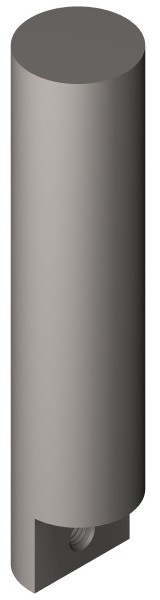

UZE CHANGE-OVER MOVABLE SHORT SHAFT

Fig. 2

7261010067



UZE CHANGE-OVER FIXED STATIONARY



7261020236

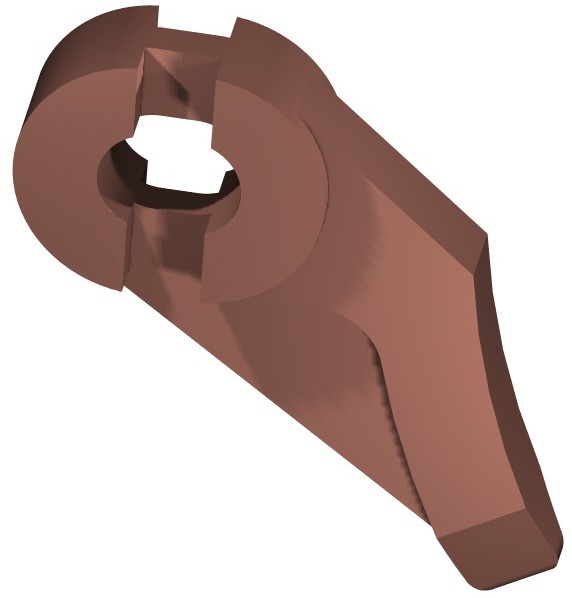

UZERN CHANGE-OVER FIXED STATIONARY

Fig. 3

7261020136



UZERT SELECTOR STATIONARY CONTACT



7261020305



UZERT SELECTOR STATIONARY CONTACT, DOUBLE



7261020306



*SHAFT DRILLING GUIDE FIXTURE   7261720050
  *SHAFT TOOL BLOCK FIXTURE   7261720100

7261020136
Fig. 3

*MAIN DIAL STATIONARY SUPPORT   7261020229
TAP HEAD W/ GASKET   7261004000
*TAP HEAD W/ D1 CONTACTS, A & B PHASE   7261352000

*TAP HEAD W/ D1 CONTACTS, C PHASE

  7261351000
TAP MOUNTING STEEL PLATE   7261073000



GST









MOVING CONTACT FINGER ASSY.



7541010005





STATIONARY CONTACT, 1.875



7541020005





STATIONARY CONTACT, 2.140



7541020010





STATIONARY CONTACT, 90



7541020015





COLLECTOR RING CONTACT



7541020020





TDR









MIDDLE CONTACT ASSY.



7641010018





R/H ARCING CONTACT FINGER ASSY.



7641010020



7641010041Fig. 4



L/H ARCING CONTACT FINGER ASSY.



7641010021

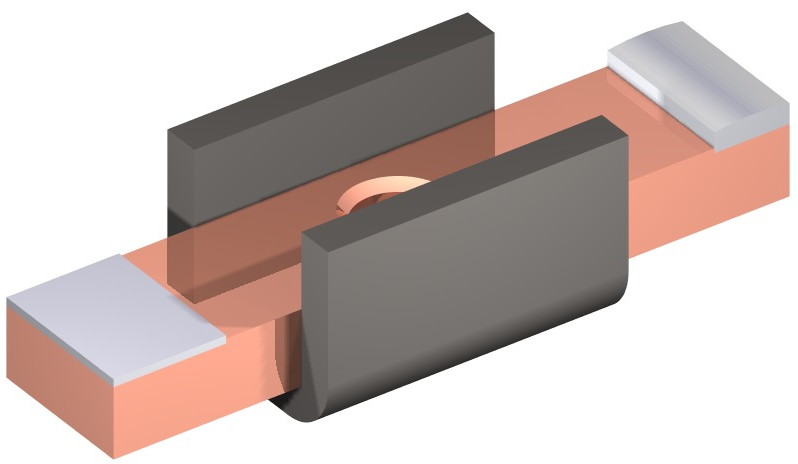

MIDDLE CONTACT FINGER

Fig. 4

7641010041



SLIP RING CONTACT



7641020006



MAIN STATIONARY CONTACT



7641020015





REVERSE STATIONARY CONTACT ASSY.



7641021005





REVERSE MOVABLE CONTACT



7641021010



NMC-Design 1
