Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

WESTINGHOUSE
URT 1000/2000A

FOR ADDITIONAL PARTS FOR URT SEE KIT PRINT #7401000000 THRU 7401300000

SELECTOR SWITCH



Fig. 17401010155



SINGLE FINGER SET W/ HOUSING



7401010130

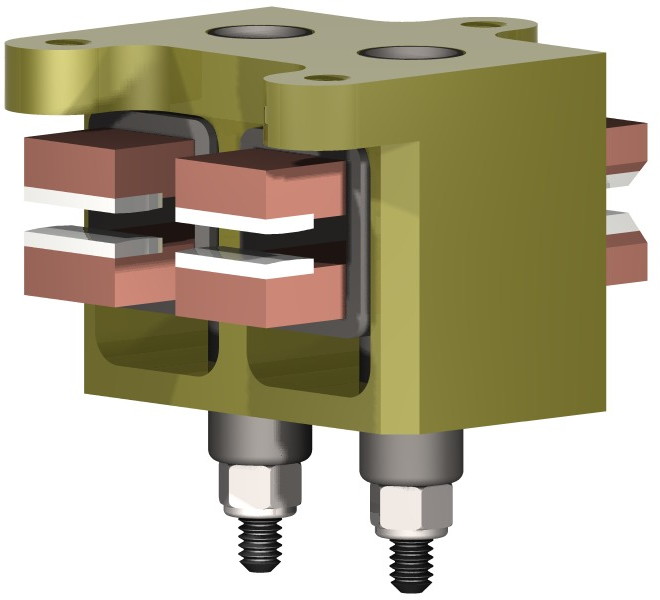

DOUBLE FINGER SET W/ HOUSING

Fig. 1

7401010155



3-HOLE STATIONARY



7401020017



4-HOLE STATIONARY ASSEMBLY W/ 1 1/2" STUD



7401020055



STATIONARY CONTACT BLADE, 4-HOLE



7401020058



7401020061
Fig. 2



STATIONARY CONTACT BLADE., 7 HOLE



7401020059

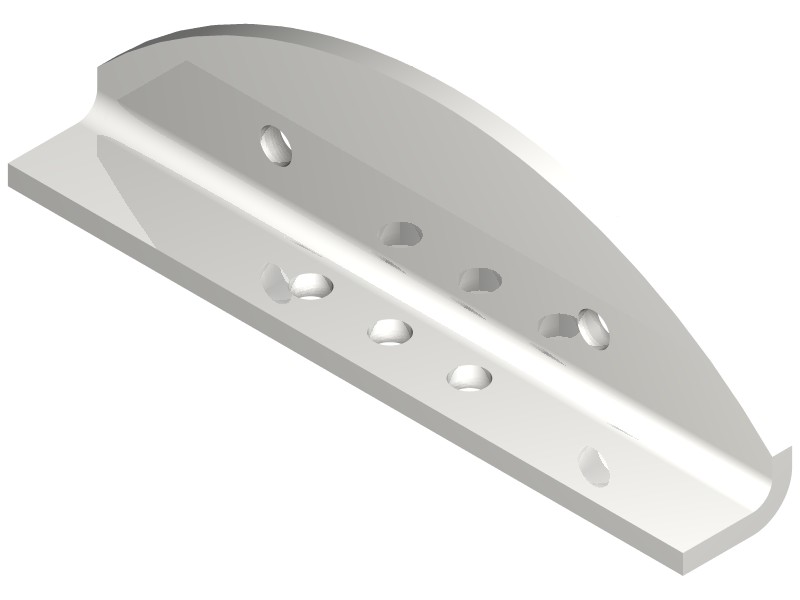

NEUTRAL STATIONARY

Fig. 2

7401020061



3/16", TWO POSITION STATIONARY



7401020222



1/4", TWO POSITION STATIONARY



7401020232





13.8KV SLIP RING



7401020238




*STATIONARY STAND-OFF, G-10



7401041200




*STATIONARY INSULATOR FOR STAND-OFF, G-10



7401042200


  15KV 800A SWITCH PANEL, 38 ” X 74 ”   7401044011

 55-D-1331 H01

  46-49KV 1000A SWITCH PANEL, 48” X 96”   7401045000

 451-C-961 H01



TRANSFER SWITCH









ARC TIP SPRING AND DASHPOT



7401010025





7401421000
7401421000
Fig. 3

TRANSFER MOVING CONTACT CURRENT ASSEMBLY W/ SLEEVE BEARINGS



7401010117

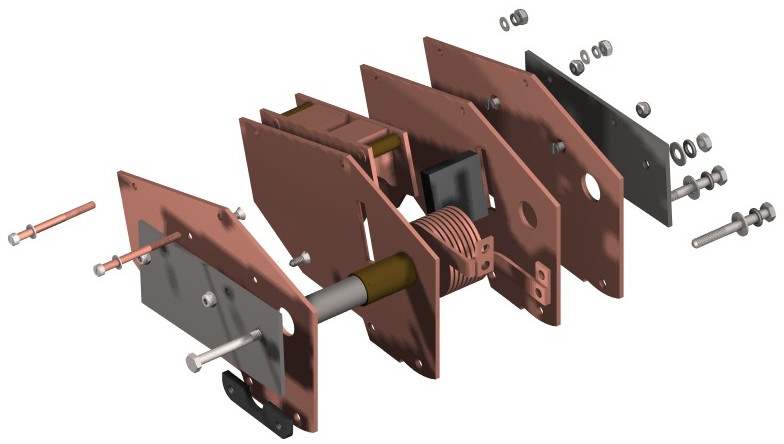

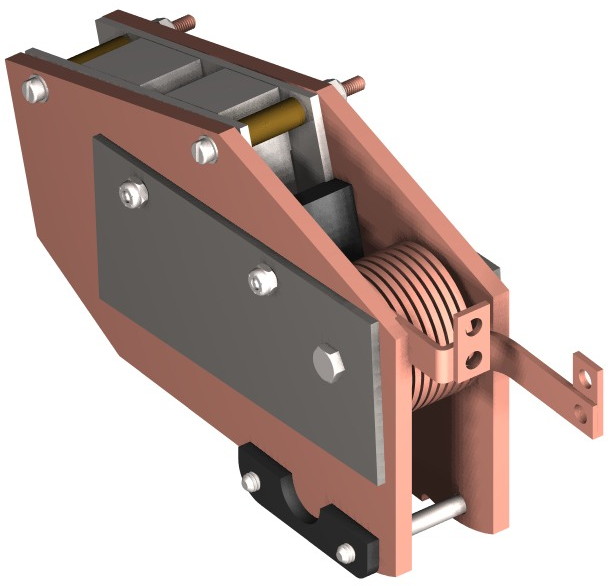

DE-ION GRID ASSY, 1000A

Fig. 3

7401421000



DE-ION GRID ASSY, 2000A



7401450000



BLADE INSULATING 6" LINK



7401043005



ARC TIP INSULATING 6" LINK



7401043015



BLADE INSULATING 5" LINK



7401043025



ARC TIP INSULATING 5" LINK



7401043035



34.5 KV SWITCH PANEL, 30 ” X 66 ”   7401044012

 56-D-3118 H01

15KV, 1000A SWITCH BREAK BASE   7401520001

 234-A-067

15KV, 1000A SWITCH HINGE BASE   7401520002

 234-A-066

ARCING TIP FRAME   7401520005
2000A AUX CONTACT MOUNTING BASE   7401020020

FIBER DRIVE GEAR FOR MOTOR, 3/4" BORE



7401720010


FIBER DRIVE GEAR FOR MOTOR, 5/8” BORE   7401720015



FOR PARTS FOR HIGH CAPACITY URT, SEE KIT PRINT #7601100000

NMC-Design 1
