Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

WESTINGHOUSE

MISCELLANIOUS CONTACTS



7271021025Fig.1

BBC FURNACE CONTACT (1 HOLE MOUNT)



7271020005



BBC FURNACE CONTACT (2 HOLE MOUNT)



7271020010



BBC FURNACE CONTACT (2 PAD)



7271020015

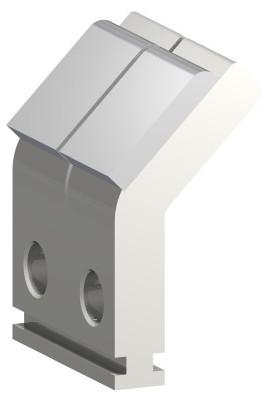

MD-910 ARCING CONTACT

Fig. 1

7271021025



145 GMB-63 CONTACT ROD



7281010050



UVT 46/69 KV 1000A

UVT SELECTOR SWITCH







Fig. 27291022045

FOR ADDITIONAL 1000A PARTS FOR UVT SEE KIT PRINT #7291200000

FOR ADDITIONAL 2500A PARTS FOR UVT SEE KIT PRINT #7291300000
FOR ADDITIONAL 1500A/2000A PARTS FOR UVT SEE KIT PRINT #7291400000

MOVING CONTACT ASSY. W/ CARRIER



7291012050



STATIONARY CONTACT



7291021046

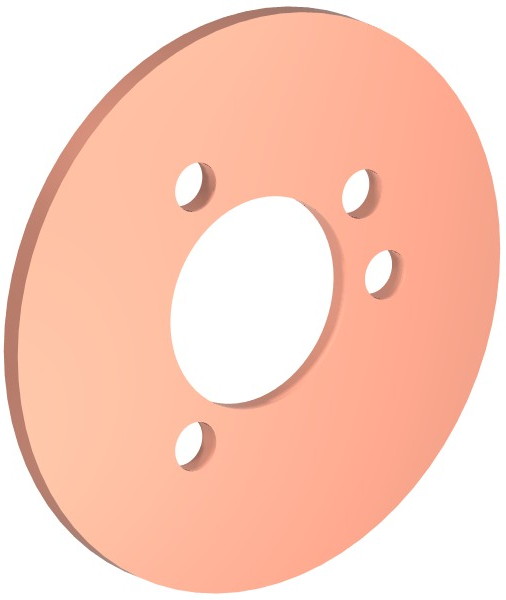

SLIP RING

Fig. 2

7291022045



VACUUM BOTTLE SHUNT ASSEMBLY   7291072100
GENEVA MOUNTING BOARD   7291074025

UVT BY-PASS SWITCH









MOVING ARCING CONTACT ASSY.



7291020010





STATIONARY ARCING CONTACT



7291013050



BY-PASS PHASE BOARD, 1000A 7291044005


 1000A CURRENT TRANSFORMER



 23186-3



7291022011
Fig. 3

7291022012
Fig. 4

UVT REVERSE SWITCH







MOVABLE CONTACT ASSY.



7291021020

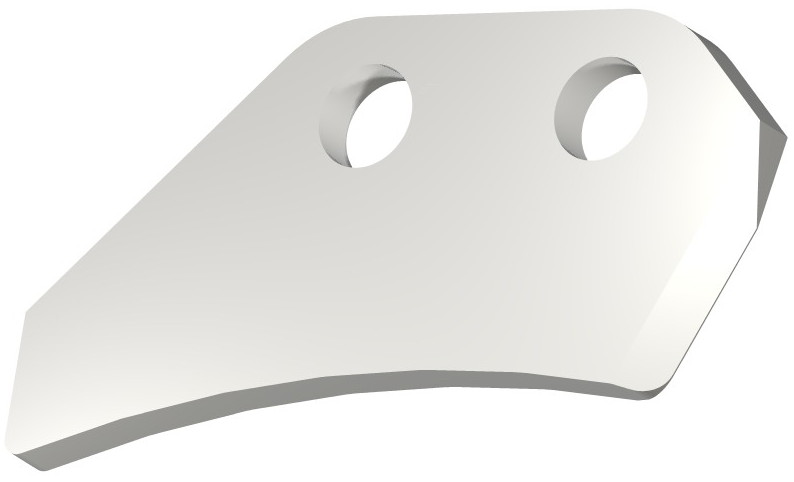

STATIONARY R/H CONTACT

Fig. 3

7291022011

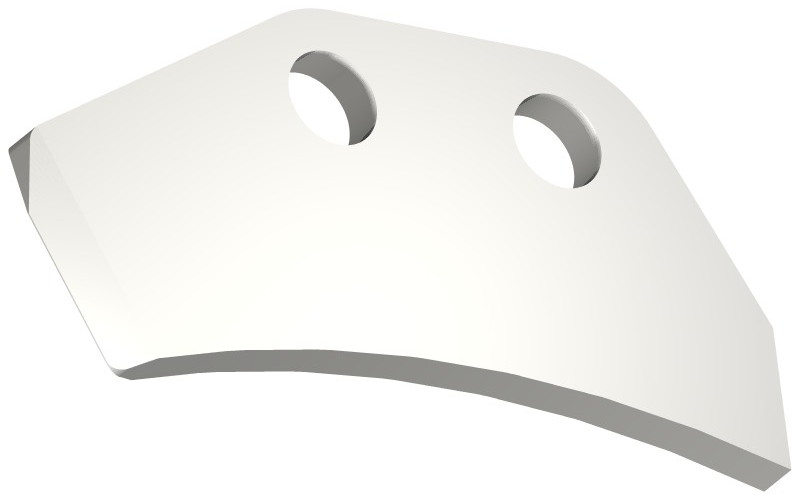

STATIONARY L/H CONTACT

Fig. 4

7291022012



WHV, WSB-4

NLTC







7331020010
Fig. 5

MOVABLE CONTACT ASSY., 230-6-500 23KV



7331010000

458C149G07

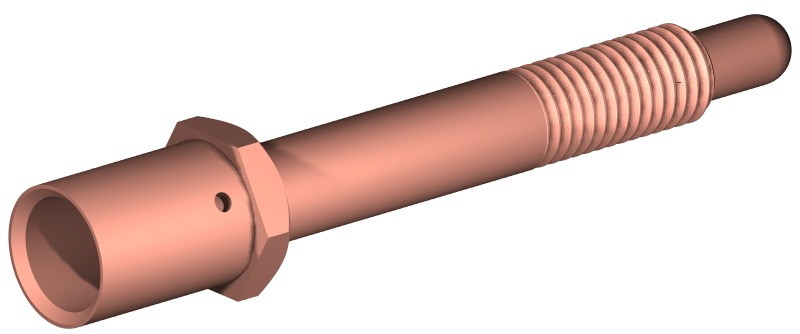

7/16" INSERT STATIONARY CONTACT
FOR 11/16" DIA. MCM CABLE

Fig. 5

7331020010

452C33H07

3/8" INSERT STATIONARY CONTACT
FOR 5/16" DIA. MCM CABLE



7331020015

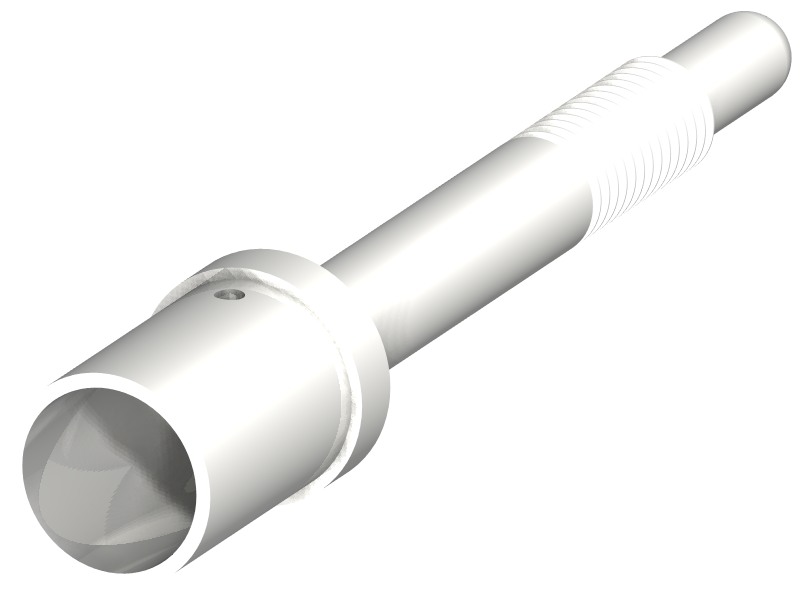

7331020115  Fig. 6

3/8" INSERT STATIONARY CONTACT
FOR 3/4" DIA. MCM CABLE

Fig. 6

7331020115



















NMC-Design 1
