Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

ABB/ WESTINGHOUSE
URS-69/12KV

URS LTC



7111410011Fig. 1





FOR ADDITIONAL PARTS FOR URS, URS-D, SEE KIT PRINT #7111300000 & 7111400000

PHOS. BRONZE DRIVE PLATE, URS, URS-D

FIG. 1

7111410011

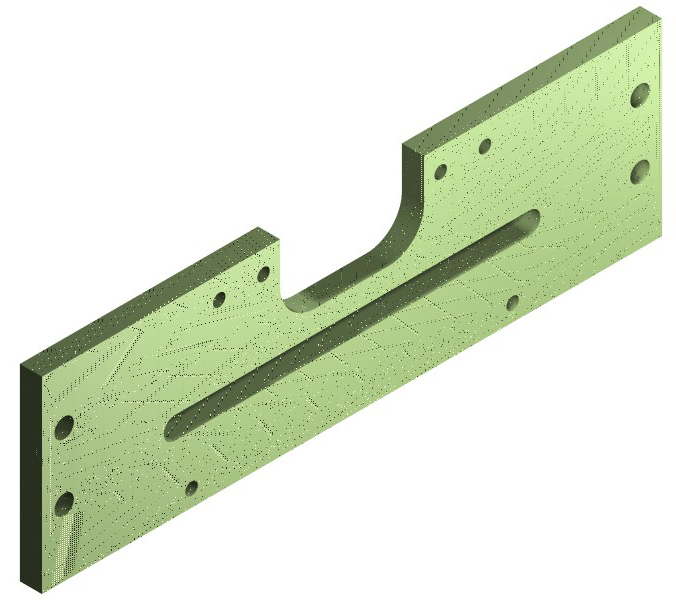

*LOWER MOVABLE DRIVE PLATE, G-10, URS, URS-D



7111440001



*REVERSE MOVABLE DRIVE BOARD, G-10, URS



7111440002



*REVERSE MOVABLE DRIVE BOARD, G-10, URS-D



7111430020



*PHASE MOUNTING BRACKET, G-10, URS, URS-D



7111440006



3 PHASE INLINE TAP BOARD W/ GASKET, 27 1/8” X 61 1/8", URS PRE 1982



7111440007





*DRIVE LINK (4 5/8”), G-10, URS, URS-D



7111440008





*DRIVE LINK (8 ¼”), G-10, URS



7111440009




*DRIVE LINK (5 ¼”), G-10, URS



7111441008

 12-D-8575 G01

*DRIVE LINK (9”), G-10, URS



7111441009



*DRIVE LINK (8 3/4”), G-10, URS-D



7111441010



URS/URS-D INLINE TAP BOARD W/ GASKET, 30 ½” X 62”, URS AFTER 1982   7111441007
(CV) INLINE TAP BOARD W/ GASKET, 28” X 62”, URS   7111442027 28-D-9326 H01
(CH) INLINE TAP BOARD W/ GASKET, 29 ½” X 61”, URS   7111442037 25-D-5375 H01
L SHAPED PATTERN SELECTOR BOARD, 43” X 48 ½”, URS   7111445057 16-D-2006 H01

URS-D REMANUFACTURED LTC



7112400000



URS REMANUFACTURED LTC, PRE 1982



7112410000



URS REMANUFACTURED LTC, AFTER 1982   7112420000

FIBER SPUR DRIVE GEAR W/ TAPER PIN



7111720010



UNR-15000/20000KVA
OUTDOOR 3 PHASE TRANSFORMER

UNR TRANSFER SWITCH







FOR ADDITIONAL PARTS FOR UNR, SEE KIT PRINT #7211300000



STATIONARY CONTACT ASSY.



7211221000





MOVABLE MAIN AND ARCING ARM SUPPORT ASSY.



7211520000



7211210037
Fig. 2

MAIN AND ARCING SUPPORT BRAID



7211530023



UNR REVERSE SWITCH







MOVING FINGER ASSY.



7211210007



MOVING BRUSH ASSY.



7211210041



STATIONARY CONTACT



7211220008

5A4579

UNR SELECTOR SWITCH







MOVING BRUSH CONTACT



7211210035

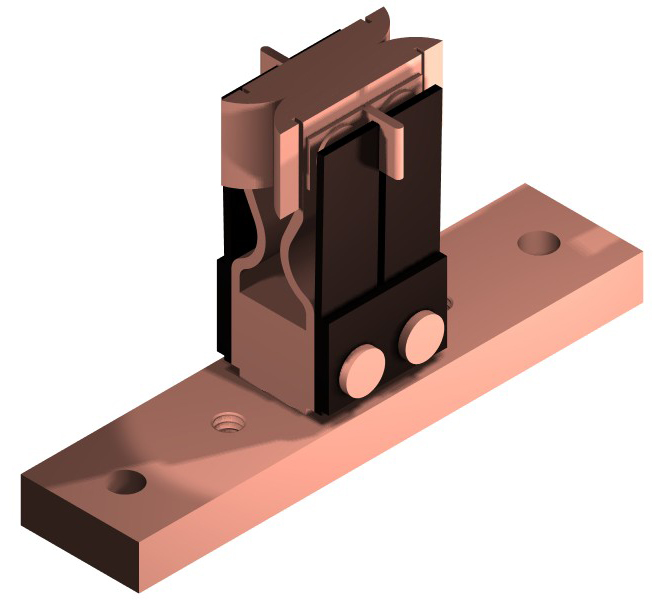

MOVABLE PREVENTIVE AUTO RAIL BRUSH CONTACT

 FIG. 2

7211210037





3 PHASE STATIONARY BRUSH CONTACT



7211320001





5 1/8" STATIONARY BRUSH CONTACT



7211320002





SINGLE PHASE STATIONARY BRUSH CONTACT



7211320004




  PRESSURE VACUUM GUAGE 10-0-10 PSIG 050-35E   7001360006
  VACUUM PRESSURE BLEEDER +5/-5   50174
