Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

PENN./M.E.
996, 396B

396B,996 TRANSFER SWITCH

8411042015
Fig
1

FOR ADDITIONAL PARTS FOR 996 TRANSFER SWITCH, SEE KIT PRINT #8411060000 & 8411070000

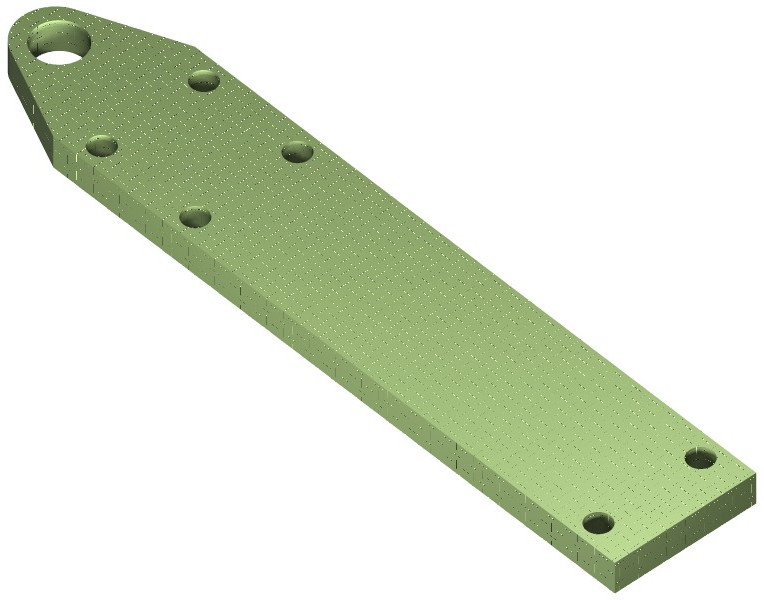

* OUTER INSULATED ARM FOR MOVABLE CARRIER



8411042014



* MIDDLE INSULATED ARM FOR MOVABLE CARRIER

FIG. 1

8411042015



* ARCING BARRIER ASSEMBLY



8411042001





396B TRANSFER SWITCH

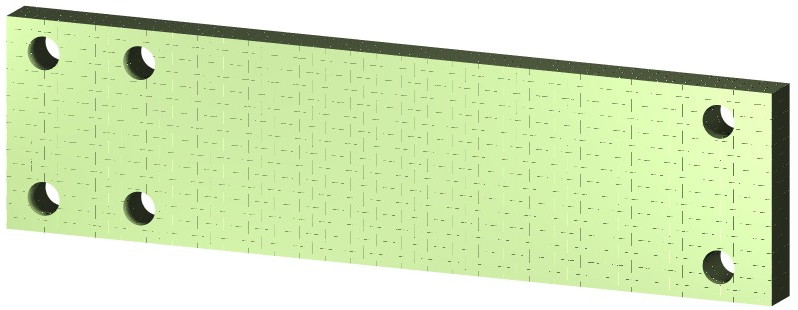

* OUTER INSULATED ARM FOR MOVABLE CARRIER

FIG. 2

8411042114



8411042114
Fig.
2

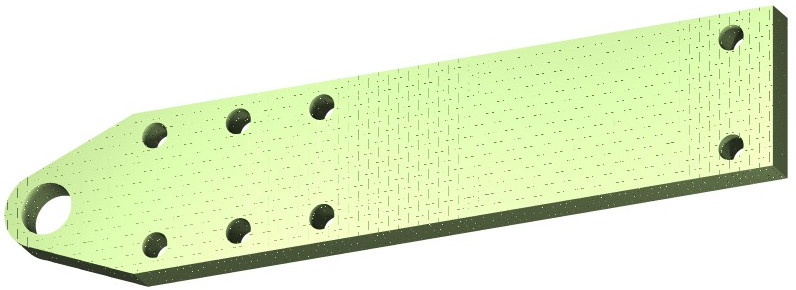

* MIDDLE INSULATED ARM FOR MOVABLE CARRIER

FIG. 3

8411042115

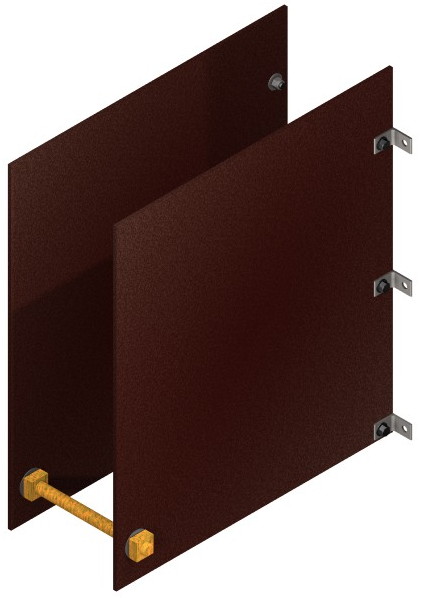

* ARCING BARRIER ASSEMBLY, ITEMS #50 THRU 60

FIG. 4

8411042101



 LOWER STUD SUPPORT W/ CONTACTS   8411027000
LOWER STUD SUPPORT W/O CONTACTS, ITEM #35   8411027010

8411042115
Fig.
3

996 SELECTOR SWITCH

MOVABLE CONTACT ASSEMBLY



8121010101



STATIONARY MAIN CONTACT



8121020001


TAP CHANGER GEAR BOX, REMANUFACTURED   8412720000
8411042101
Fig. 4

396B SELECTOR SWITCH

SELECTOR FINGER ASSEMBLY W/ HARDWARE 3 5/32” LG FINGERS   8411026000
SLIP RING CONTACT   8411026015

CONTACT FINGER, 3 5/32" LONG



8411026029



* DRIVE SHAFT ASSEMBLY , ITEM #121

8411026039



STATIONARY CONTACT, DOUBLE



8411026045



STATIONARY NEUTRAL



8411026046



396B REVERSE SWITCH

STATIONARY CONTACT



8411026020





CONTACT FINGER, 3.95 INCHES LONG



8411026028



  397D LTC
SELECTOR SWITCH MOVING FINGER, 5” LONG 8141210010
496B LTC
  REVERSE SWITCH MOVABLE FINGER, 5” LONG   8131210010
  SELECTOR SWITCH MOVABLE FINGER, 4 ” LONG   8131210020
