Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M NO.

PENN./M.E. 394

SELECTOR SWITCH

Fig. 1
8511027000
Fig. 2

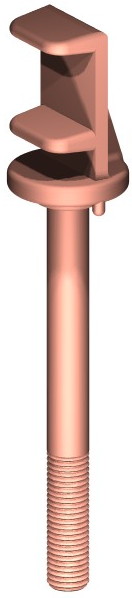

STATIONARY CONTACT

FIG. 1

8511021010





TRANSFER SWITCH

FOR ADDITIONAL PARTS FOR 394 TRANSFER SWITCH, SEE KIT PRINT #8511300000

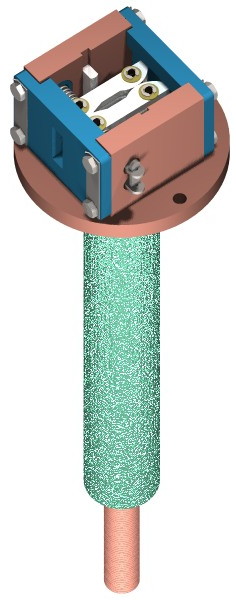

LOWER SUPPORT STUD WITH CONTACTS

FIG. 2

8511027000





LOWER SUPPORT STUD



8511027010























PENN./M.E. 333

333 LTC MAIN & STAT CONTACTS


Fig. 3

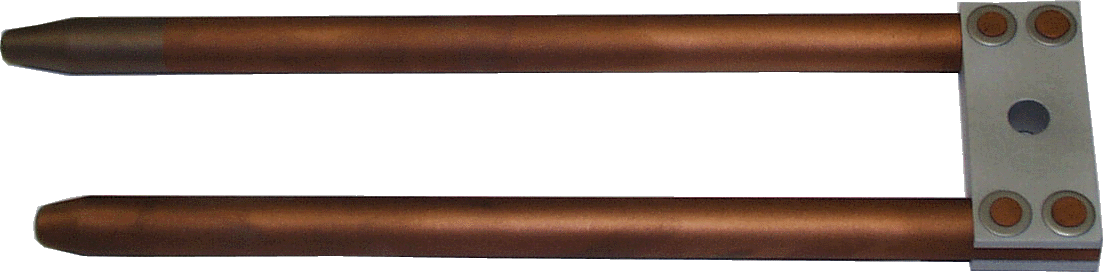

MOV. TIE BAR ASSEMBLY

FIG. 3

8711011000

C-64462-B

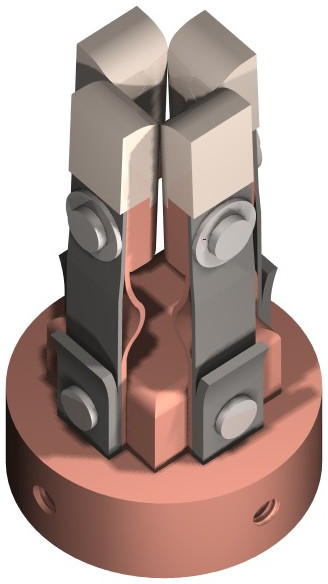

STAT. ARC FINGER ASSEMBLY

FIG. 4

8711021000

C-97339-C

Fig. 4
8711021000

Fig. 58711021100

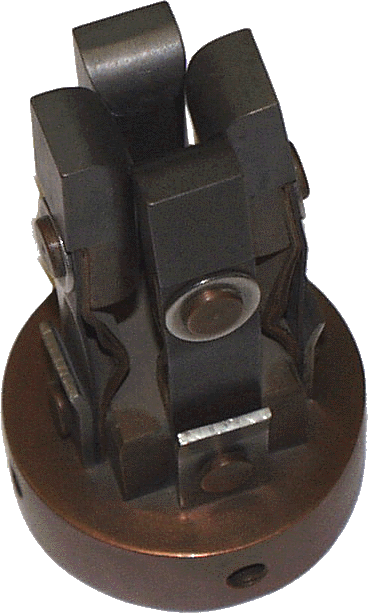

STAT MAIN FGR CONTACT ASSEMBLY

 FIG. 5

8711021100

C-97339-D
A-64439

STAT ARC DISPERSER ASSEMBLY



8711420000




















    220  LTC
    SELECTOR FINGER SET W/ HARDWARE   8671010001
    REVERSE FINGER SET W/ HARDWARE   8671010002
    OUTER COLLECTOR RING MOVABLE ASSEMBLY   8671052001
    INNER COLLECTOR RING MOVABLE ASSEMBLY   8671052002
    OUTER COLLECTOR RING   8671720001
    INNER COLLECTOR RING W/ BEARING   8671720002
    INNER COLLECTOR RING W/O BEARING   8671720003
NMC-Design 1
