Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M NO.

McGRAW-EDISON

TYPE "R", "WE", "D", "RV", "L" ETC. (RECLOSERS)

54410100WE

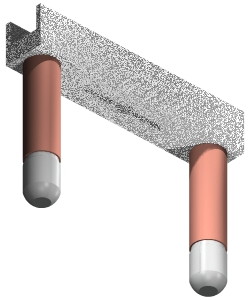

Fig. 1
5441010000

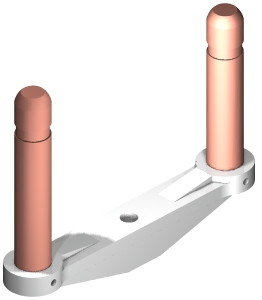

Fig. 2

"WE" MOV CONTACT YOKE ASM

FIG. 1

54410100WE

KA11W1

"RE" MOV CONTACT YOKE ASM

FIG. 2

5441010000

KA16VLR

"D" MOV CONTACT YOKE ASM



544101000D

KA105DVI

"L" MOV CONTACT YOKE ASM



544101000L

KA32L



"R" MOV CONTACT YOKE ASM



544101000R

KA538R1

5441420100

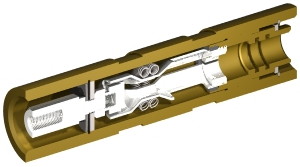

Fig. 3 (Section View)

"RV" MOV CONTACT YOKE ASM



54410100RV



"W" MOV CONTACT YOKE ASM



544101000W



"NR" OIL SWITCH CONTACT



5441010030



"NR" 5/16 MOV CONTACT ROD



5441010040



5741020110Fig. 4

"NR" OIL SWITCH STAT ASM



5441020050



STA CONTACT FGR ASM



5441021050



"6H" STA CONTACT ASM



544102006H



EXHAUST TUBE ASM

FIG. 3

5441420100

KA258R

5741020000 Fig. 5

TYPE "VR"

MAIN MOVING ASM



5741010000



STA ARC FGR ASM

FIG. 4

5741020110



STA MAIN FGR ASM



5741020115



STA MAIN CONTACT ASM

FIG. 5

5741020000



NMC-Design 1
