Normandy Machine Company, Inc. NORMANDY MACHINE CO. INC.
815 E. CHERRY ST., TROY, MISSOURI 63379
PHONE (636) 528-8913     (800) 526-6740
FAX (636) 528-8937  sales@normandymachine.com
Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

McGRAW-EDISON
2080 ampere capacity

550CS LTC







REVERSE MOVABLE TIP W/ SILVER TUNGSTEN, OLD STYLE



5311012010



Fig. 1

FRONT SLIP RING AFTER 1982   5311023005 AZO28853
FRONT SLIP RING BEFORE 1982

5311023015



REVERSING SEGMENT

FIG. 1

5311023006

BZO308560

REAR SLIP RING ASSEMBLY



5311023010

AZO18271700B

SPANNER NUT, BRASS   5311034003
REAR INSULATING ARM ASSEMBLY   5311033037
  FRONT INSULATING ARM ASSEMBLY 5311034036



FRONT INSULATING BOARD   5311044032
  SELECTOR SWITCH PHASE PANEL   5311420000


Fig. 2

REVERSE MOVABLE CARRIER



5311440005



INSULATED DRIVE ARM (LONG)

FIG. 2

5311442009



INSULATED DRIVE ARM (SHORT)



5311442019



Fig. 3

O-RING AND HARDWARE KIT



5311050040



SPANNER WRENCH   5311720010
STUFFING BOX KIT   5111051040
MOTOR COVER   5111720100
  550C REMANUFACTURED TAP CHANGER   5312400000
550C DRIVE UNIT   5312720000
  POSITION INDICATOR SWITCH   23216
  OPERATION COUNTER SWITCH   23218
  550C MOTOR ONLY   23218-1
  PANEL GASKET   11968


550C DOOR GASKET (180” APPROX), NEW STYLE



11969



  550C DOOR GASKET (188” APPROX), OLD STYLE   11969-1


550-D LTC

     Fig. 4

COARSE MOV ASSEMBLY



5511011100

A Z O-219161

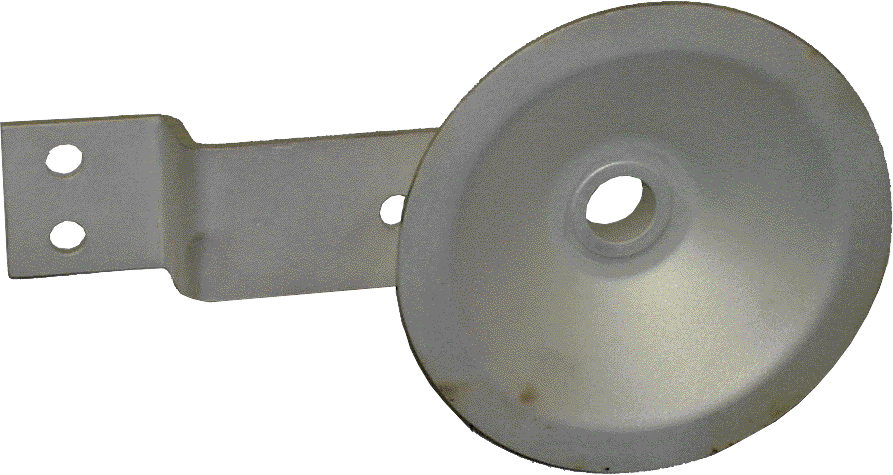

COARSE ADJUSTER COL RING W/BRACKET

FIG. 3

5511020100



COARSE ADJUSTER COL RING W/ STUD



5511020105



COARSE ADJUSTER COL RING W/O STUD, 4 HOLE

5511020114



Fig. 5

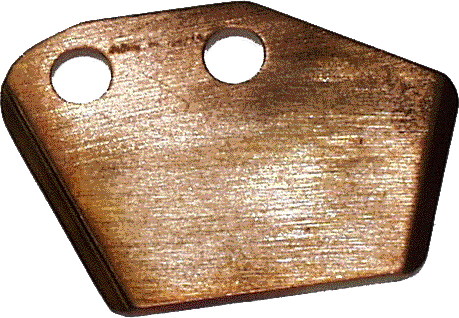

COARSE ADJUSTER STAT CONTACT (SM) BLADE     FIG. 4 5511020119

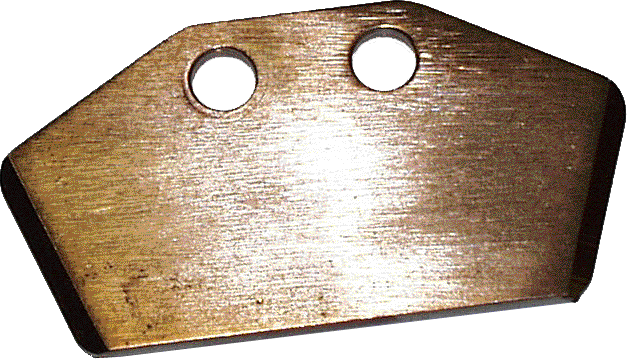

COARSE ADJUSTER STAT CONTACT BLADE

FIG. 5

5511020120

A Z O-219052

550-E LTC

*COARSE MOVABLE ASSEMBLY

5611010100



*COARSE ADJUSTER CONTACT FINGER



5611010110



COARSE ADJUSTER STAT CONTACT BLADE



5611020120



NMC-Design 1
