Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

McGRAW-EDISON 550B

550BHS, 550BLS 1450 ampere capacity-



BHS MAIN MOVABLE WITH OFFSET THRUST PIECE

FIG. 1

5211010002





BHS MAIN MOVABLE W/O OFFSET THRUST PIECE



5211010101




9/16-SHOULDER BOLT



5311010007



5211010002
Fig. 1

FRONT SLIP RING W/ BRACKET



5211020048



REAR SLIP RING



5211033009



FRONT INSULATED ARM ASSEMBLY

 Fig. 2

5211033036



REAR INSULATED ARM ASSEMBLY



5211033037





FRONT INSULATING SUPPORT



5211033042



5211033036 Fig. 2

BHS REAR INSULATING ARM ASSEMBLY W/ OFFSET



5211033135



INSULATED INPUT DRIVE SHAFT



5211033201



INSULATED R/H DRIVE SHAFT



5211033202



INSULATED L/H DRIVE SHAFT



5211033203

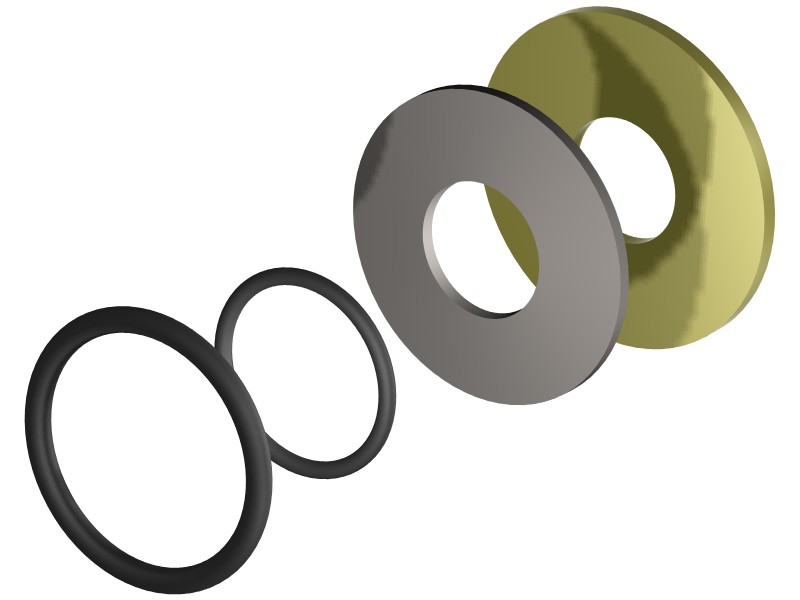

O-RING AND HARDWARE KIT

Fig. 3

5211050040





PHASE PANEL



5211420000



 5211050040 Fig. 3

BHS FRONT INSULATING ARM W/ OFFSET (NEW STYLE)



5211420136



REV INSULATED ARM ASM W/BEARING AND RACE



5211444005



MOTOR COVER, 550, 550B, 550C   5211720100

550BLS REMANUFACTURED LTC AFTER 1982



5212400000



550BHS REMANUFACTURED LTC AFTER 1982



5212410000




550BLS REMANUFACTURED LTC BEFORE 1982



5212420000




550BHS REMANUFACTURED LTC BEFORE 1982



5212430000





DOOR GASKET



11965





PANEL GASKET



11966



  MOTOR BREAKER CAPACITOR KIT

 23211


  MOTOR ONLY   23210
  POSITION INDICATOR SWITCH   23216
  OPERATION COUNTER SWITCH   23218
  STUFFING BOX KIT 550, 550B, 550C   5111051040
  SPANNER NUT   5211033003
  SPANNER WRENCH   5211720010
