Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

McGRAW EDISON
550LS, 550HS

550LS, 550HS5000/6250-kva 910 ampere capacity-HRV

Fig. 1

FOR ADDITIONAL PARTS FOR 550H, 550L SEE KIT PRINT 5111020000 THRU 5111020200

 SHOULDER BOLT



5111010007

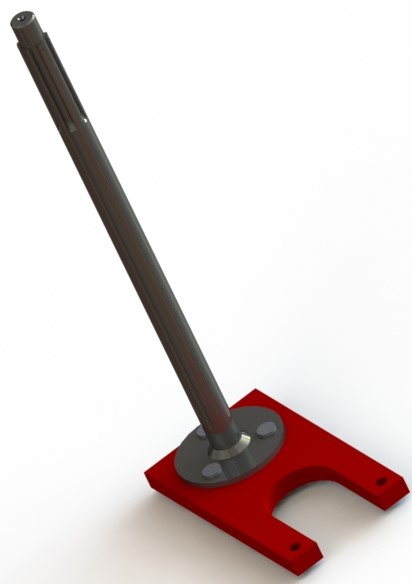

550LS REAR INSULATING ARM ASSEMBLY Fig. 1

5111420005


550LS FRONT INSULATING ARM ASSEMBLY   5111420136
PHASE PANEL, NEW STYLE   5111440100
PHASE PANEL, OLD STYLE   5111440200

INSULATED DRIVE ARM (LONG)



5111442006





INSULATED DRIVE ARM (SHORT)



5111442019





OFFSET INSULATED ARM WITHOUT SPLINE SHAFT



5111450005



  550HS REAR INSULATED ARM W/ OFFSET   5111450015
550HS FRONT INSUATED ARM ASSEMBLY   5111450025
5111050040
Fig. 2

O-RING AND HARDWARE KIT

Fig. 2

5111050040

AZO353554

STUFFING BOX KIT 550, 550B, 550C   5111051040

MAIN MOVABLE WITH OFFSET THRUST MOUNT AND WIDE TIP



5111910001



MOTOR COVER, 550, 550B, 550C   5211720100

FRONT COLLECTOR RING W/BUS, NEW STYLE 1 27/32”



5511020100

AZO121394

REAR COLLECTOR RING W/STUD, NEW STYLE 5/8”-18    5511020205



REAR COLLECTOR RING OLD STYLE 5/8"-11



5511020105

AZO121395

  FRONT COLLECTOR RING W/BUS, OLD STYLE 1 15/16”    5511020200



550LS REMANUFACTURED LTC



5112400000





PANEL GASKET



11963





HIGH AND LOW RECOVERY DOOR GASKET, NEW STYLE



11964





 HIGH AND LOW RECOVERY DOOR GASKET, OLD STYLE



 11964-1





 LIMIT SWITCH



 23203





 TIMER RELAY



 23204





MOTOR BREAKER CAPACITOR KIT

 23206



  MOTOR ONLY 23207
  BREAKER ONLY   23208
  CAPACITOR ONLY   23209
  POSITION INDICATOR SWITCH   23216
  OPERATION COUNTER SWITCH   23218

NMC-Design 1
