Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

ITE / BROWN BOVERI

362GA40-2 550GA
MOV ARC MODIFIED 362GA40-20C-550GA REBUILT W/GROOVE AND SPIRAL RETAINING RINGS

9212006100

STA  ARC CONT MOD 362GA40-2 550GA REBUILT

9212006126

STA  ARC OLD STYLE 362GA40-2 550GA REBUILT

9212006126


MOVING ADAPTER 362GA40-20C-550GA REBUILT

9212006150



Fig. 1922101007

ACB TTR-6 8.25 THRU 800 KV MAX VOLTAGE 600 THRU 4000 AMPS

MOVABLE CONTACT BLADE [5-1/4]

1/2" THICK W/ COIN



9221010002



MOVABLE CONTACT BLADE [6.250]

3/8" THICK W/ COIN



9221010015

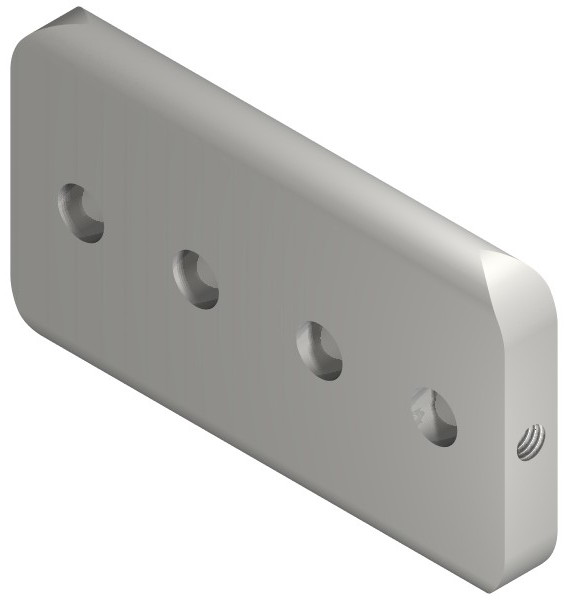

MOVABLE CONTACT BLADE [7.00"]

3/4" THK. W/ COIN

FIG. 1

9221010075





MOVABLE CONTACT BLADE [7.00"]

5/8" THICK W/ COIN



9221020005





MOVABLE CONTACT BLADE [6.250]

1/2" THICK W/ COIN



9221020015





STATIONARY CONTACT FGR 161KV 2000A, 6 3/8"



9221020006



9221020036
Fig. 2

STATIONARY CONTACT FGR 69KV 2000A 5 3/16"



9221020007



STATIONARY CONTACT FGR, 5 3/8"



9221020016



STATIONARY CONTACT FGR 34.5KV, 6 9/32"



9221020026

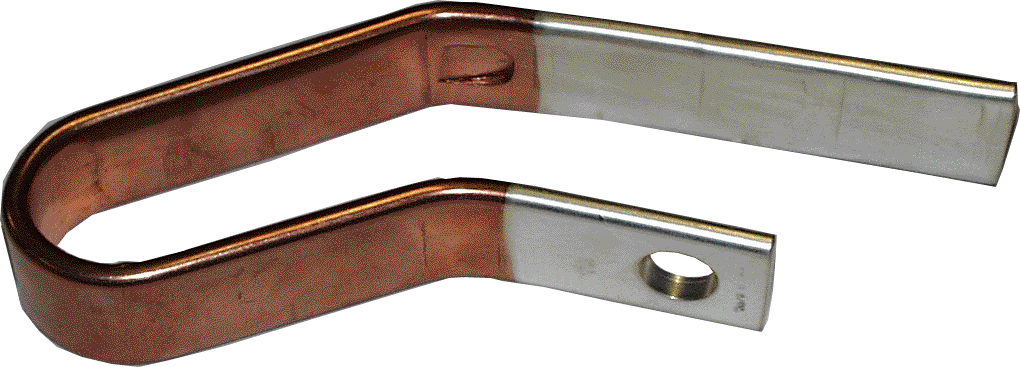

STATIONARY CONTACT FGR, 8 3/8"

FIG.2

9221020036



AIR DISC SW MOVING BLADE 4” LNG, ” THK, 2” B.C.
9251010040



  MOVING BLADE 4 1/32” LNG, ” THK, 1 ” B.C.   9251010042
  MOVING BLADE 5” LNG, ” THK, 2 “ B.C.   9251010043
  STATIONARY CONTACT FINGER, 7 13/16” LNG   9251010047
  STATIONARY CONTACT FINGER, 7” LNG   9251020048
  STATIONARY CONTACT FINGER, 9 ” LNG   9251020049
  STATIONARY CONTACT FINGER, 10 11/16” LNG   9251010007
  STAT CONTACT FINGER W/ HARDWARE, 10 11/16”   9251010010
  STAT CONTACT FINGER W/ HARDWARE 10 ” LNG   9251010008
  STAT CONTACT FINGER W/ HARDWARE 10 ” LNG   9251010015
NMC-Design 1
