Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

GENERAL ELECTRIC
10,000 MVA, 1600A-2000A

FK-121-169 OCB 10,000 MVA



FOR ADDITIONAL PARTS FOR FK-138, SEE KIT PRINT #342138000

3421320000
Fig. 1

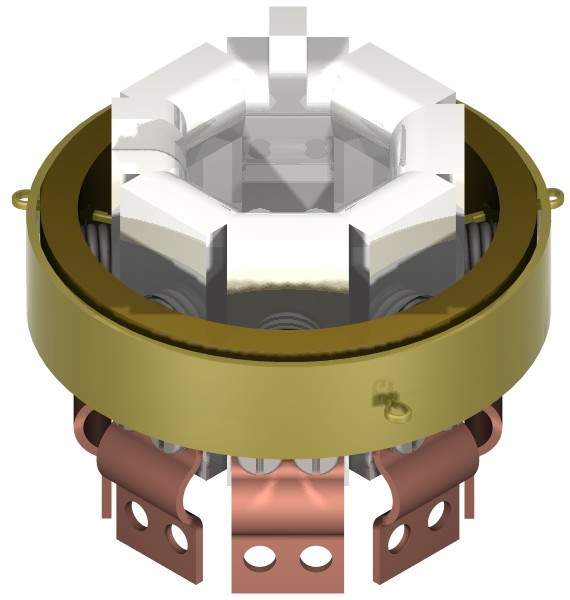

* STAT CONTACT 8 FGR CLUSTER ASM, 6 MAIN & 2 ARCING FGRS

FIG.1

3421320000

392A201 G1

* STAT MAIN CONTACT



3421320041



* STAT ARC CONTACT



3421320051

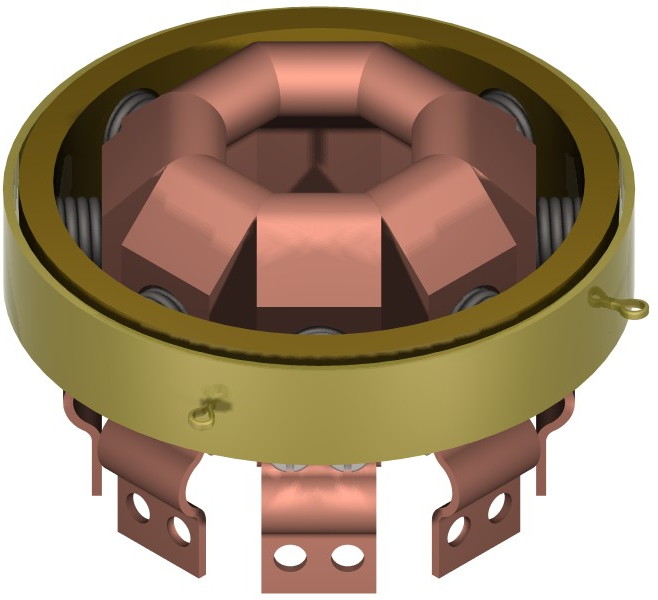

* STAT TRANSFER CONTACT CLUSTER ASSY, 8 FGR

FIG. 2

3421330000



3421330000
Fig. 2

* UPPER BAFFLE ASSEMBLY



3421410138



* LOWER BAFFLE ASSEMBLY



3421410238



* STAT CONTACT 8 FGR CLUSTER ASSY, 7 MAIN & 1 ARCING FGR



3451420301



* UPPER CONTACT ROD 27-3/4



3451010020





LOWER CONTACT ROD 15-3/4



3451010029

0958D0933G2

Fig. 3
3401223000

LOWER CONTACT ROD 17-3/16



3451010039



LOWER CONTACT ROD 16-5/8



3451010049



LOWER CONTACT ROD 15-1/2



3451010059



* UPPER CONTACT ROD 27-1/4



3451010110





GENERAL ELECTRIC
15,000 MVA, 3000A

FK-121-169 OCB 15,000 MVA



FOR ADDITIONAL PARTS FOR FK-121/169, SEE KIT PRINT #3451400000

3451220000
Fig. 4

LOWER CONTACT ROD 15-7/8



3451010009



* UPPER CONTACT ROD 27-1/8



3451010010



* FK145 LIFT ROD, 77 3/16” LONG   3451040001
* FK145 37000-5 LIFT ROD, 81” LONG   3451040011
* FK-169 LIFT ROD, 80 ¾” LONG   3451040101 0153B6709G003
* FK-169-16000 LIFT ROD, 82 ½” LONG   3451040201 269A2174003

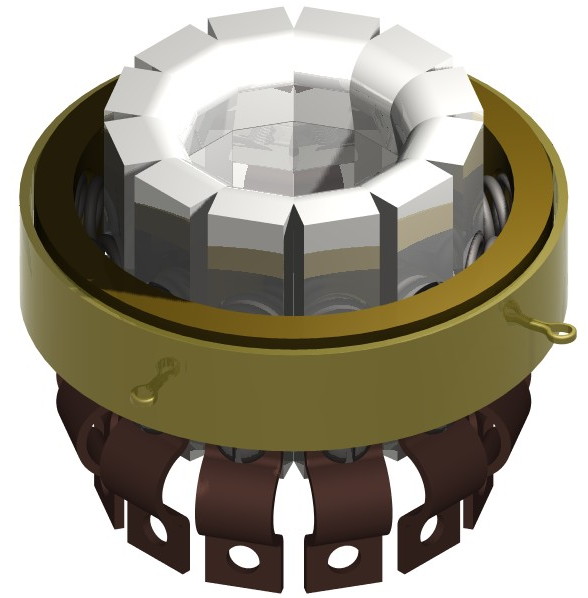

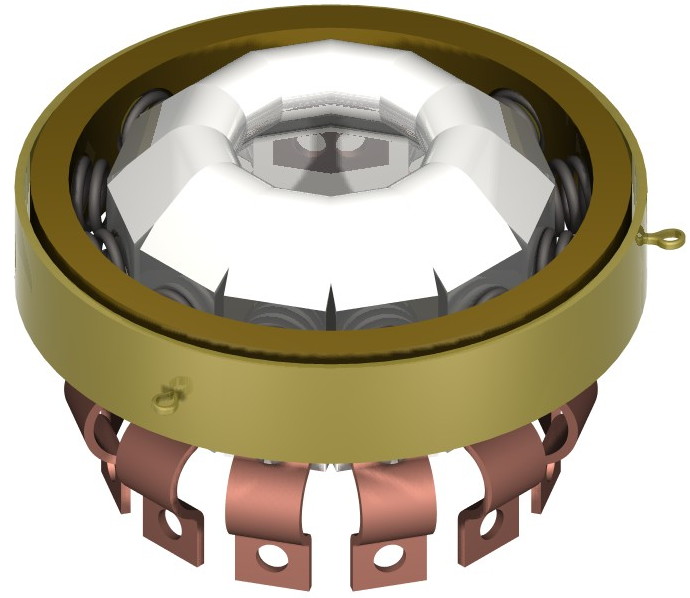

* TRANSFER CLUSTER ASM 12 FGR

FIG. 3

3401223000



* UPPER ARCING CLUSTER ASM 12 FGR

FIG. 4

3451220000



G.E. FKD OCB

FKD 14.4, 15.5

3101420200Fig. 3

FOR ADDITIONAL PARTS FOR FK-121/169, SEE KIT PRINT #3101000100,  3101000200 & 3101000300

* YOKE AND CONTACT ASM

FIG. 2

3101921000



* LIFT ROD GUIDE 14.4KV & 15.5KV



3101440015



* LIFT ROD 14.4KV-250-1

3421440250

0103A1180003

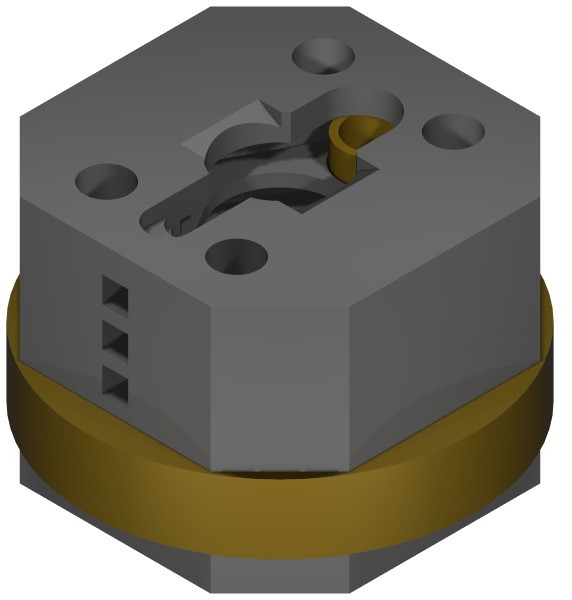

* STAT BAFFLE STACK ASM W/ OIL TUBE 15.5KV-18000-1 2000 AMP & 25.8 KV

FIG. 3

3101420200

0214X0775G002

3101910400
Fig. 4

ALUMINUM SERRATED CONTACT ROD 7-7/16" IN LENGTH



3101910300

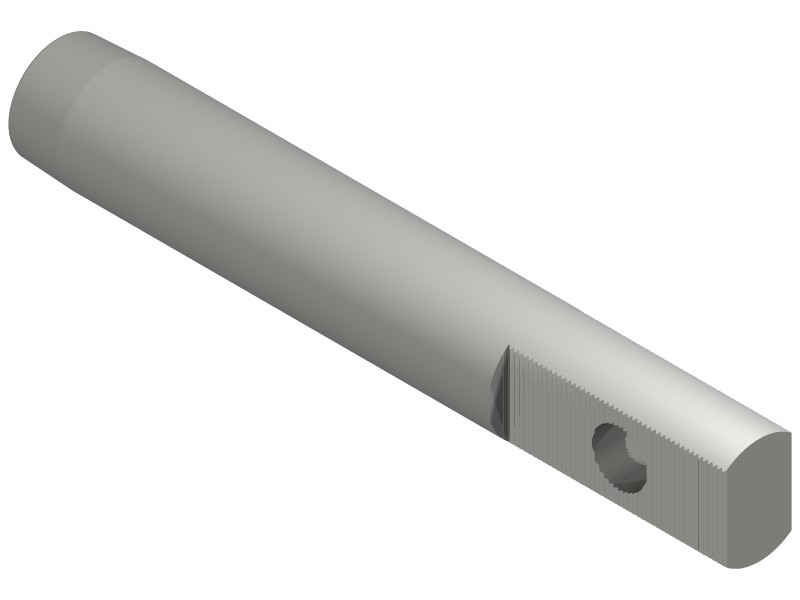

SERRATED CONTACT ROD 25.8KV

FIG. 4

3101910400

0103A3850G002

SERRATED CONTACT ROD 15.5KV-18000-1 2000 AMP & 25.8



3101910500

0153B6737G001

CONTACT ROD CROSSARM FKD 15.5-18000-1



3101910525




NMC-Design 1
