Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

GENERAL ELECTRIC

LRT 72/ TMLT 32 440/525 AMP


FOR ADDITIONAL PARTS SEE KIT PRINT #3711000000 [440 AMP] & 3711920000 [525 AMP]

  POSITION INDICATOR CABLE ASSEMBLY   3711072000


LOW CURRENT DRIVE SPRING ASSEMBLY



3711020035

R2314



HIGH CURRENT DRIVE SPRING ASSEMBLY



3711020045



  HAND CRANK GASKET KIT 3711050040

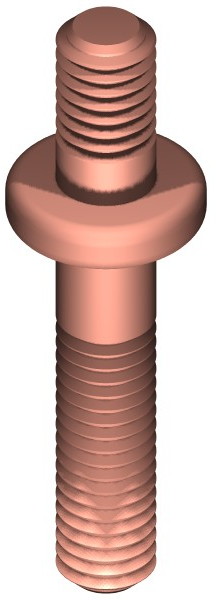

/3711210010

Fig. 1

SELECTOR STATIONARY STUD

FIG. 1

3711210010



REVERSE STATIONARY STUD



3711210034

194A9348 P21

FEED THRU NUT W/SET SCREWS



3711310004



REVERSE DRIVE BRACKET



3711320028

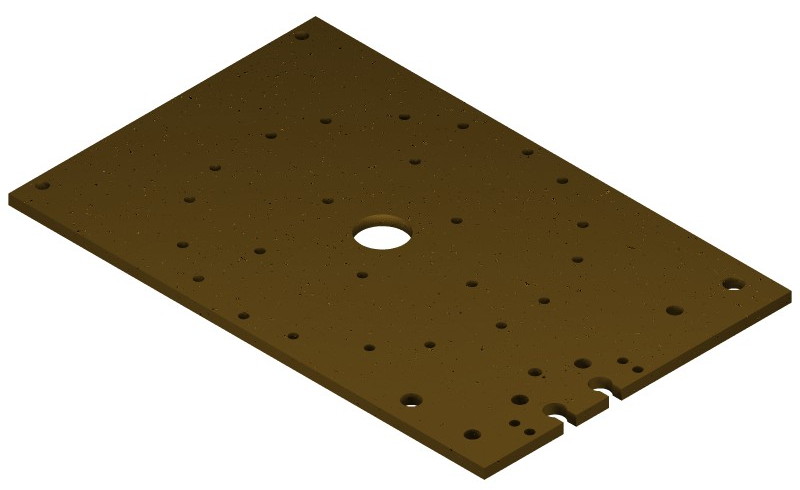

PHASE BOARD W/2-1/8" HOLE (A & B PHASE)

FIG. 2

3711400000



PRE-STOP LIMIT SWITCH 3711420000


TAP BOARD MOUNTING NUTS



3711440000



3711400000
Fig. 2

FEED THRU BOARD



3711440004



3/4 DIA SHAFT FOR PHASE BOARD SUPPORT



3711440010



MAIN ROTOR SHAFT



3711440014



REVERSE INSULATED ARM



3711440016



PHASE BOARD W/ .937 HOLE, C PHASE



3711440100





REMANUFACTURED LTC (LOW CURRENT)



3712000000





REMANUFACTURED LTC (HIGH CURRENT)



3712900000





CONTROL COMPARTMENT GASKET



11934





DOOR GASKET



11934-1





FEED THRU BOARD GASKET, 3/16" THICK



11935





FEED THRU BOARD GASKET, 3/8" THICK



11935-01





FEED THRU BOARD GASKET, 1/4" THICK



11935-02



  DRIVE MOTOR W/ GEAR   23178-N


MICRO SWITCH



23179





DRIVE MOTOR GEAR (MACHINED)



50096-3





LRT 68


FOR ADDITIONAL PARTS SEE KIT PRINT #3811000000 & 3811920000



A & B PHASE BOARD



3811414000





C PHASE BOARD



3811411400





REVERSE DRIVE ARM



3811444000





PHENOLIC SELECTOR SWITCH SHAFT



3811444444





REMANUFACTURED LTC (LOW CURRENT)



3812300000





 REMANUFACTURED LTC (HIGH CURRENT)



 3812400000



  HAND CRANK CABLE ASM W/-HARDWARE SEAL & SPRINGS   3811074000
  HIGH CURRENT POWER SPRING ASSEMBLY   3811020035
  DRIVE MOTOR W/ MACHINED GEAR (50096-8)   23168-N
  ML-32, MLT-32


MLT-32/LRT-48 ADDITIONAL PARTS SEE KIT PRINT #3211200000 & 3211300000

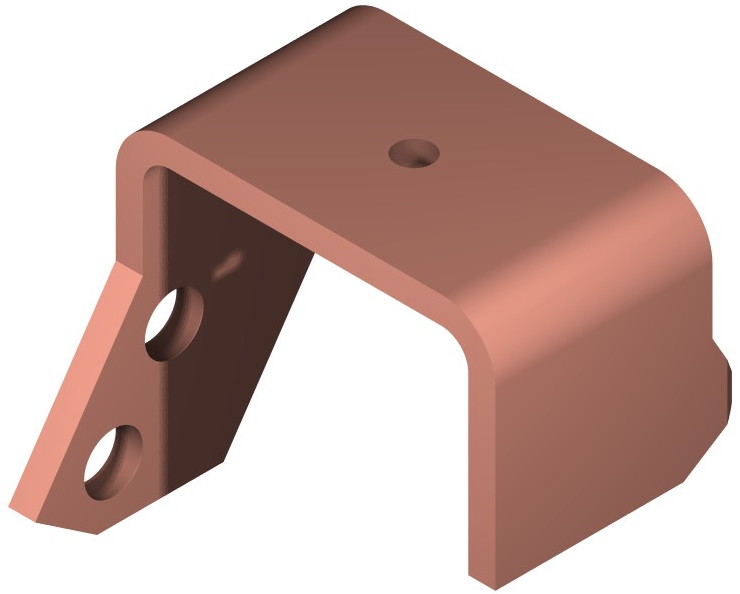

3211021024

Fig. 3

ML32 NEUTRAL STATIONARY



3211021023



ML32 L/H REVERSE STATIONARY

FIG. 3

3211021024

3901A373AB 27

ML32 R/H REVERSE STATIONARY



3211021025

3901A373AB 28

NMC-Design 1
