Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

FEDERAL PACIFIC

800A/1200A TC-23, 34, 46 & 546







FOR ADDITIONAL PARTS FOR 800A/1200A TC-23, 34,46 & 546 SEE KIT PRINT  #2201000100



TC-546 1200 A COMPLETE REMANUFACTURED TAP

2202004200

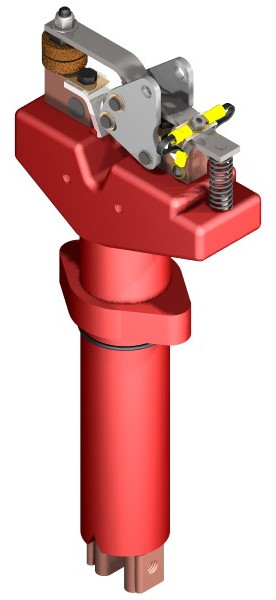

2201004110Fig. 1 TC-546 REMANUFACTURED DRIVE UNIT ASSEMBLY

2202007200

NEUTRAL STATIONARY CONTACT

2201021110



800A TAP HEAD & GASKETS,  W/O CONTACTS

2201004000

592100037A

* 800A DIVERTER WITH D1 CONTACTS & O-RING

 Fig. 1

2201004110



* 800A TAP HEAD WITH D1 CONTACTS & GASKET

2201004444



* 800A SELECTOR ROTOR WITH D1 CONTACTS



2201004500



800A/1200A DIVERTER W/O CONTACTS

2201003200

2C592100056
SPRING BARREL ASSEMBLY   2201005200 2C51250463A

800A/1200A SEALS AND MOUNTING ASSEMBLY

2201005400

5125-1259A
TC-546 DOOR GASKET 11949-1



TC-546 & TC-525 800A/1200A TAPHEAD GASKET

11950


  TC-546 & TC-525 DRIVE UNIT PLATE GASKET   11952



800A/1200A DIVERTER O-RING

11955





GARLOCK SEAL FOR OEM OIL SEAL ASSEMBLY 63-221

50059-6




GARLOCK SEAL FOR UPGRADE OIL SEAL ASSEMBLY

50059-7




1200A TC-15 & 25







2201004401

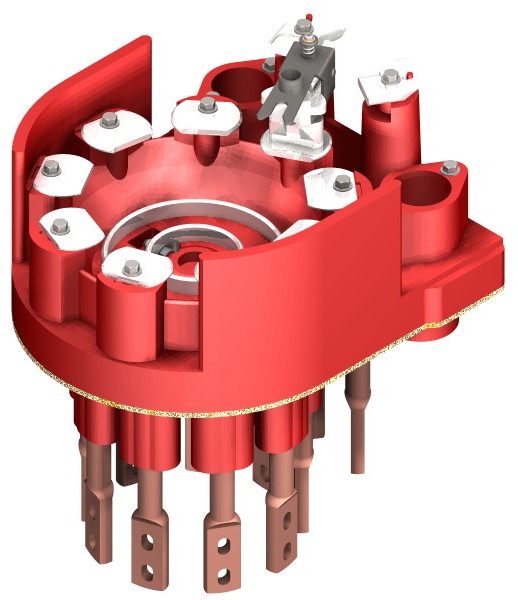

Fig. 2
FOR ADDITIONAL PARTS FOR 1200A TC-15 &25 SEE KIT PRINT #2201000000

* DIVERTER WITH D1 CONTACTS AND O-RING



2201003210

59210009A

* ROTOR WITH D1 CONTACTS



2201004300



TAP HEAD & GASKET W/O CONTACTS



2201004400



* TAP HEAD WITH D1 CONTACTS AND HEAD GASKET

Fig. 2

2201004401


DIVERTER W/O CONTACTS (SHORT SHANK)   2501003500 ZC59210005D
DIVERTER W/D1 CONTACTS (SHORT SHANK)   2201003600

1200A TC-525







FOR PARTS FOR TC-525, SEE KIT PRINT #2501000000 AND CONVERSION KIT FROM TC-25-546 TO TC-525, PART #2501101200

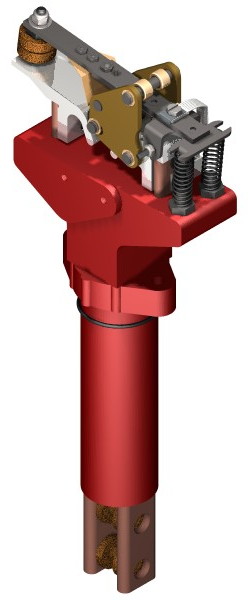

2501003200 Fig. 3 TC-525 REMANUFACTURED COMPLETE TAP   2502400000

TC-525 REMANUFACTURED DRIVE UNIT

2502007200

NEUTRAL FIXED STATIONARY



2501021010



DIVERTER W/O CONTACTS 1991-1994, WITH 1-3/4 HOLE SPACING



2501003100

59210029B

* DIVERTER W/D1 CONTACTS 1991-1994, WITH 1-3/4 HOLE SPACING

Fig. 3

2501003200



DIVERTER W/O CONTACTS 1985-1991, WITH 1-1/4 HOLE SPACING



2501003300

59210029A

DIVERTER W/D1 CONTACTS 1985-1991, WITH 1-1/4 HOLE SPACING



2501003400


800 AMP/1200A SEALS AND MOUNTING ASSEMBLY

2501005400

5215-1169A
TAPHEAD & GASKET W/O CONTACTS

2501004400

59210022A
TC-525 SPRING BARREL ASSEMBLY 2501005200 51251200A
NMC-Design 1
