Normandy Machine Company, Inc.

O.E.M. TYPE

DESCRIPTION



NMC P/N

O.E.M. NO.

FOR PARTS FOR TLG TAP CHANGER, SEE KIT PRINT #1411200000, 141120000K & 1411300000

ALLIS CHALMERS

TLS LTC







REMANUFACTURED LTC W/ ISOLATED REVERSE SWITCH



1412400000



1411210014
Fig. 1

REMANUFACTURED LTC ISOLATED TO STANDARD REVERSE SWITCH



1412410000



REMANUFACTURED LTC W/ STANDARD REVERSE SWITCH



1412420000



MAIN DIAL LOAD SPRING ASSEMBLY



1411020010

 4313-4314 4325-4327

REVERSE SWITCH LOAD SPRING ASSEMBLY



1411020020

  4328-4331

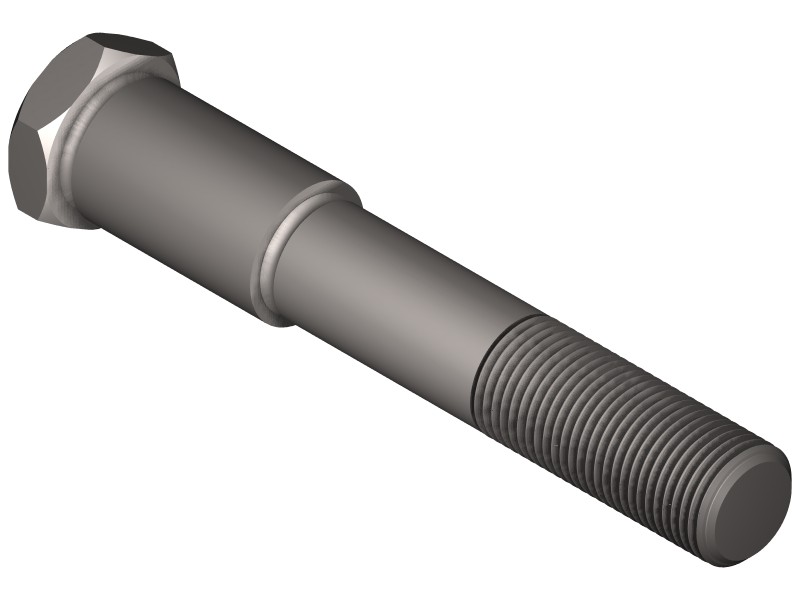

"C" PHASE REVERSE SHAFT

Fig. 1

1411210014

4711

  TLS SELECTOR MOVING SUPPORT A & B PHASE   1411310003 4718A
  TLS SELECTOR MOVING SUPPORT C PHASE   1411310013 4718



"A" & "B" PHASE BOARD



1411430004

4715A



"C" PHASE BOARD



1411340004

4715



TLS FEED THRU W/ HARDWARE FOR SOLID LEADS
(24 ” X 25 ” X ” THICK)

  1411420000
TLS FEED THRU BOARD ASM W/ HDW FOR CABLE LEADS
(29 ” X 30” X 1" THICK)
1411430114



REVERSE SWITCH DRIVE ARM

1411440005

4710

SELECTOR SWITCH DRIVE PLATE ARM "C" PHASE
(3/4" DRIVE SLOT)



1411440010

4719

  SELECTOR SWITCH DRIVE ARM "A" & "B" PHASE
(3/4" DRIVE SLOT)
  1411440030 4719A
1411440020
Fig. 2

SELECTOR SWITCH DRIVE ARM "C" PHASE (1" SLOT)



1411440110

4719

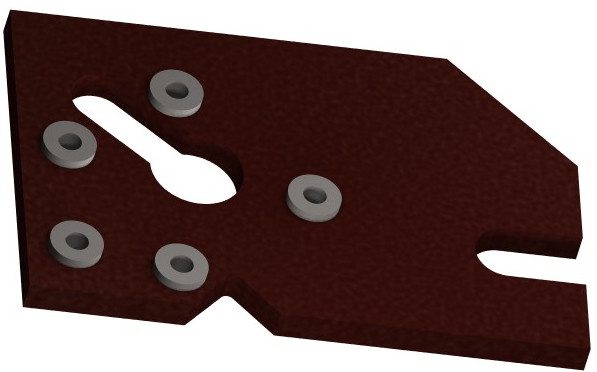

SELECTOR SWITCH DRIVE ARM  "A" & "B" PHASE WITH BUSHING INSERTS (1" SLOT)

Fig. 2

1411440020

 4719A

COL. HUB FLANGE "A" & "B" PHASE



1411520007

4723

TLS MOTOR W/ SPROCKET

23198-N



  LARGE MOTOR SPROCKET 1411720080
  SMALL MOTOR SPROCKET 1411720075
  LIMIT SWITCH E13   23199


LIMIT SWITCH E33



23199-1





TLS INSPECTION DOOR GASKET 11983-1



ALLIS CHALMERS TLG



FOR PARTS FOR TLG REGULATOR, SEE KIT PRINT #1891000000

NMC-Design 1
