ALLIS CHALMERS

TLH-20, 21 34/12 KV

FOR ADDITIONAL PARTS, SEE KIT PRINT #1101010000 THRU 1111450000

TLH-20 REMANUFACTURED LTC ISOLATED TO STANDARD



1102420000



1101230002
Fig. 1

TLH-20 REMANUFACTURED LTC W/ ISOLATED REVERSE SWITCH



1102430000



TLH-20 REMANUFACTURED LTC W/ STANDARD REVERSE SWITH

1102450000

* TLH-20 TAPCHANGER LEAD SET



1101044000

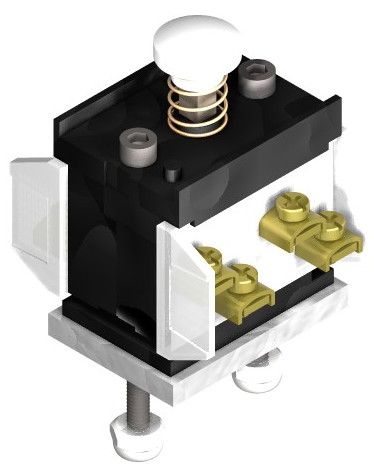

TLH-20 MICRO LIMIT SWITCH

FIG.1

1101230002

63-131-254-601

TLH-20 PHASE BOARD



1101430043

7063

TLH-20 SELECTOR DRIVE ARM W/ SLEEVES   1101470000 7038

TLH-20 MAIN & HUB FGR SUPPORT

1101520047

7078



TLH-20,21 MAIN & COL FGR SUPPORT, 1 SET COLLECTOR FINGERS



1101520037

7058



* TLH-21 REMANUFACTURED LTC W/STANDARD REVERSE SWITCH



1112420000



* TLH-21 REMANUFACTURED LTC W/ISOLATED REVERSE SWITCH



1112430000



1111330010
Fig. 2

TLH-20,21 REVERSE SWITCH DRIVE TUBE   1111220006 7068, 8068

TLH-20,21 FORK CRANK



1111310009

7065,8065

* TLH-20,21 (3/4") BUSHING & O-RING KIT



1111440000



* TLH-20,21 (1") BUSHING & O-RING KIT



1111450000



TLH-20,21 INSPECTION DOOR GASKET



11980

01-115-320-002

1111340012
Fig. 3

TLH-20,21 FEED THRU BOARD GASKET



11981

01-115-320-001

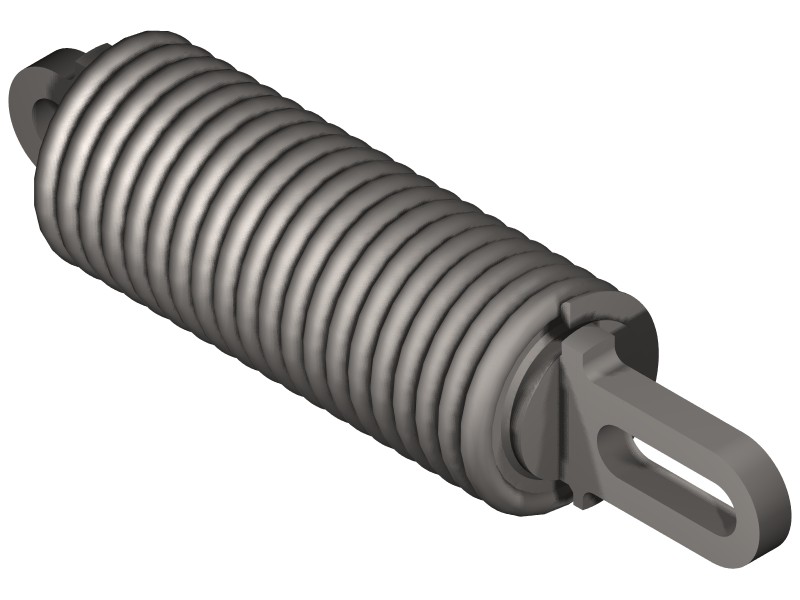

TLH-20,21 DRIVE SPRING ASSEMBLY

FIG. 2

1111330010

8027

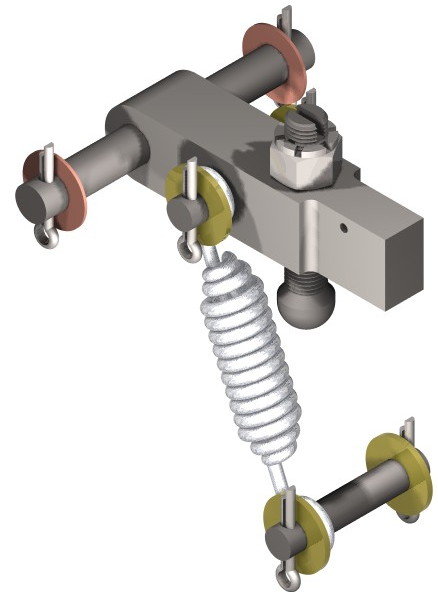

TLH-10,20,21 LATCH SPRING ASSEMBLY

FIG. 3

1111340012

8052,8053,8054

TLH20,21 FEED THRU COLLET NUT



1111350034

63-122-721-085

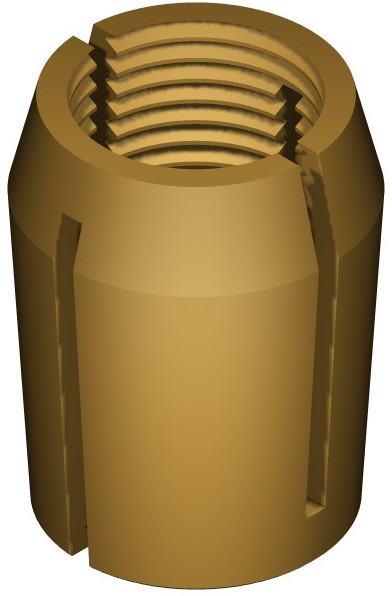

TLH20,21 LEAD END PRESSURE COLLET

FIG. 4

1111350035



TLH-20,21 TERMINAL STUD, 3/4" DIA.



1111350038



TLH-20,21 TERMINAL STUD, 1" DIA.



1111350238

63-115-353-010

1111350035
Fig. 4

TLH-20,21 FEED THRU BOARD (29-11/16 X 47-9/16), 3/4" STUD HOLES

1101420044

63-105-858-001

TLH-21 FEED THRU BOARD (25-5/16 X 39-5/16), 3/4" STUD HOLES



1111420044



TLH-21 FEED THRU BOARD ASM. (30" X 48"), 3/4" STUDS



1111420244

TLH-21 FEED THRU MOUNTING BOARD (30" X 48"), 1" STUD HOLES   1111420344

TLH-21 PHASE PANEL BOARD

  1111430043

 8063

TLH-21 SELECTOR DRIVE ARM W/ SLEEVES   1111470000 8038
* TLH-21 TAPCHANGER LEAD SET   1111045000
* TLH-20,21 JACK FIXTURE TO INSTALL 3" PIN INTO MAIN SHAFT

1111210090



TLH-20, 21 REVERSE SWITCH DRIVE ARM   1111240005 7075, 8075
TLH-20 NEW MOTOR WITH SPROCKETS   23190-N20 7024
SMALL MOTOR SPROCKET   1101720009
LARGE MOTOR SPROCKET   1101720015

TLH-21 CONTINUED ON NEXT PAGE

NMC-Design 1
