INTERNAL AND EXTERNAL BUSHING CLAMPS AND SPRINGS

INTERNAL CLAMPS

PART NO.

A

B

C

MATERIAL

13000
13002

2-5/8"
2-1/4"

3-5/16"
3-1/4"

5/16"
5/16"

ALMAG
ALMAG

13003
13016

1-7/8"
1-3/16"

2-5/8"
1-11/16"

5/16"
5/16"

ALMAG
ALMAG

13021
13025

3-1/16"
1-3/4"

4-3/8"
2-3/4"

5/16"
5/16"

ALMAG
ALMAG

13029

1-7/16

2-1/8"

1/4"-20

ALMAG

RETAINER SPRING

PART NO.

A

B

C

MATERIAL

19080
19083

15/16"
2-1/4"

1-11/32"
2-13/16"

.041
.050

S/S
S/S

19084
19085

1-13/16"
1-5/16"

2-7/16"
2"

.050
.050

S/S
S/S

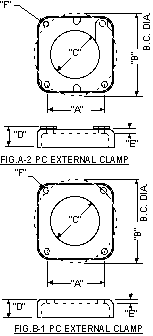

EXTERNAL CLAMPS 1&2 PIECE

FIG

PART NO,

A

B

C

D

E

F

MATERIAL

A
B
B
B

13001
13004
13007
13008

2-3/4"
4-1/4"
3-5/8"
3-3/8"

3-7/8"
6"
5-1/8"
4-3/4"

2-9/16"
3-15/16"
3-3/8"
3-7/16"

25/32"
47/64"
9/16"
1/2"

1/8"
11/64"
1/4"
3/16"

3/8"
9/16"
7/16"
7/16"

ALMAG
ALMAG
ALMAG
ALMAG

B
A
C
A

13009
13011
13012
13013

4-1/4"
3-5/8"
-----
4-1/4"

6"
5-1/8"
-----
6"

4-5/16"
2-7/8"
4-1/2"
3-7/8"

1/2"
1/2"
15/16"
3/4"

3/16"
3/16"
1/4"
1/4"

9/16"
7/16"
9/16"
9/16"

ALMAG
ALMAG
ALMAG
ALMAG

A
A
A
A

13014
13019
13020

3-1/4"
4-1/4"
2-1/8"
2-3/4"

4-5/8"
6"
3"
3-13/16"

2-3/4"
3-7/16"
1-7/8"
2-1/2"

3/4"
7/8"
5/8"
5/8"

1/4"
1/4"
1/4"
5/16"

7/16"
7/16"
3/8"
3/8"

ALMAG
ALMAG
ALMAG
ALMAG

A
A
B

13023
13024
13027

3-7/8"
5-1/2"
4-1/4"

5-1/2"
7-13/16"
6"

3-7/16"
6"
3-15/16"

1"
2"
47-64"

5/16"
5/8"
11/64"

7/16"
7/16"
9/16"

ALMAG
ALMAG
R. BRASS


FIG. C
