SECTION 3

PAGE 9

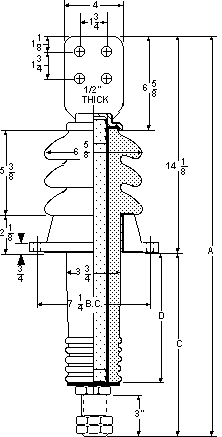

8.7 KV CLASS POWER BUSHINGS
75 KV BIL  208 THRU 2600 AMPS
CREEP10 3/4" STRIKE 6 1/8"
THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL

STUD SIZE

PART NO.

A

C

D

1/2"-13
208
AMPS

63-6650
63-6651
63-6652
63-6653

27-5/8
30-5/8"
34-5/8"
37-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

5/8"-11
417
AMPS

63-6655
63-6656
63-6657

63-6658

27-5/8
30-5/8"
34-5/8"
37-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

3/4"-16
600
AMPS

63-6660
63-6661

63-6662
63-6663

27-5/8
30-5/8"
34-5/8"
37-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1"-14
800
AMPS

63-6665
63-6666
63-6667
63-6668

27-5/8
30-5/8"
34-5/8"
37-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/8"-12
1000
AMPS

63-6670
63-6671
63-6672
63-6673

27-5/8
30-5/8"
34-5/8"
37-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/4"-12
1200
AMPS

63-6675
63-6676
63-6677
63-6678

27-5/8
30-5/8"
34-5/8"
37-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/2"-12
1600
AMPS

63-6680
63-6681
63-6682
63-6683

27-5/8
30-5/8"
34-5/8"
37-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-5/8"-12
2000
AMPS

63-6685
63-6686
63-6687
63-6688

27-5/8
30-5/8"
34-5/8"
37-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-3/4"-12
2300
AMPS

63-6690
63-6691
63-6692
63-6693

27-5/8
30-5/8"
34-5/8"
37-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

2"-12
2600
AMPS

63-6694
63-6695
63-6696
63-6697

27-5/8
30-5/8"
34-5/8"
37-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"
