SECTION 3

PAGE 8

NORMANDY MACHINE CO. INC.
815 E. CHERRY ST., TROY, MISSOURI 63379
PHONE (636) 528-8913     (800) 526-6740
FAX (636) 528-8937 sales@normandymachine.com
Normandy Machine Co.

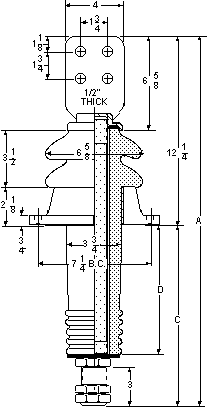

5 KV CLASS POWER BUSHINGS
60 KV BIL  208 THRU 2600 AMPS
CREEP 6 7/8" STRIKE 4 1/2"
THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL

STUD SIZE

PART NO.

A

C

D

1/2"-13
208
AMPS

63-6600
63-6601
63-6602
63-6603

25-3/4"
28-3/4"
32-3/4"
35-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

5/8"-11
417
AMPS

63-6605
63-6606
63-6607
63-6608

25-3/4"
28-3/4"
32-3/4"
35-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

3/4"-16
600
AMPS

63-6610
63-6611
63-6612
63-6613

25-3/4"
28-3/4"
32-3/4"
35-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1"-14
800
AMPS

63-6615
63-6616
63-6617
63-6618

25-3/4"
28-3/4"
32-3/4"
35-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/8"-12
1000
AMPS

63-6620
63-6621
63-6622
63-6623

25-3/4"
28-3/4"
32-3/4"
35-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/4"-12
1200
AMPS

63-6625
63-6626
63-6627
63-6628

25-3/4"
28-3/4"
32-3/4"
35-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/2"-12
1600
AMPS

63-6630
63-6631
63-6632
63-6633

25-3/4"
28-3/4"
32-3/4"
35-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-5/8"-12
2000
AMPS

63-6635
63-6636
63-6637
63-6638

25-3/4"
28-3/4"
32-3/4"
35-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-3/4"-12
2300
AMPS

63-6640
63-6641
63-6642
63-6643

25-3/4"
28-3/4"
32-3/4"
35-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

2"-12
2600
AMPS

63-6645
63-6646
63-6647
63-6648

25-3/4"
28-3/4"
32-3/4"
35-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"
