SECTION 3

PAGE 7

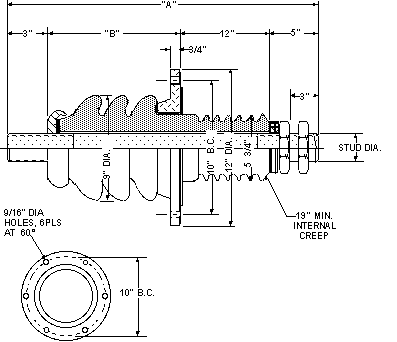

15 KV CLASS POWER BUSHINGS
110 KV BIL  208 THRU 2000 AMPS
CREEP 15 1/2"  STRIKE 8 1/4"
THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL


PART NO.

KV CLASS

BIL

AMP

EXT. CREEP

STUD DIA.

"A"

"B"

63-6246

15

110

3000

12-1/2" MIN

2-1/2"-12

32-5/16"

12-5/16"

63-6248

15

110

4000

12-1/2" MIN

3"-12

32-5/16"

12-5/16"

63-6296

23

150

3000

17" MIN

2-1/2"-12

34-15/16"

14-13/16"

63-6298

23

150

4000

17" MIN

3"-12

34-15/16"

14-13/16"
