SECTION 3

PAGE 6

NORMANDY MACHINE CO. INC.
815 E. CHERRY ST., TROY, MISSOURI 63379
PHONE (636) 528-8913     (800) 526-6740
FAX (636) 528-8937 sales@normandymachine.com
Normandy Machine Co.

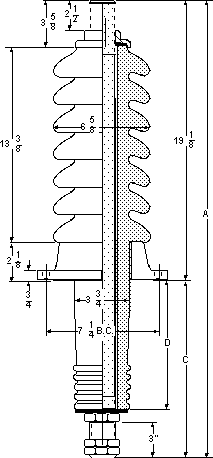

34.5 KV CLASS POWER BUSHINGS
200 KV BIL  208 THRU 2600 AMPS
CREEP 27 3/4" STRIKE 14 1/8"
THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL



STUD SIZE

PART NO.

A

C

D

1/2"-13
208
AMPS

63-6300
63-6301
63-6302
63-6303

32-5/8"
35-5/8"
39-5/8"
42-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

5/8"-11
417
AMPS

63-6304
63-6305
63-6306
63-6307

32-5/8"
35-5/8"
39-5/8"
42-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

3/4"-16
600
AMPS

63-6308
63-6309
63-6310
63-6311

32-5/8"
35-5/8"
39-5/8"
42-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1"-14
800
AMPS

63-6312
63-6313
63-6314
63-6315

32-5/8"
35-5/8"
39-5/8"
42-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/8"-12
1000
AMPS

63-6316
63-6317
63-6318
63-6319

32-5/8"
35-5/8"
39-5/8"
42-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/4"-12
1200
AMPS

63-6320
63-6321
63-6322
63-6323

32-5/8"
35-5/8"
39-5/8"
42-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/2"-12
1600
AMPS

63-6324
63-6325
63-6326
63-6327

32-5/8"
35-5/8"
39-5/8"
42-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-5/8"-12
2000
AMPS

63-6328
63-6329
63-6330
63-6331

32-5/8"
35-5/8"
39-5/8"
42-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-3/4"-12
2300
AMPS

63-6332
63-6333
63-6334
63-6335

32-5/8"
35-5/8"
39-5/8"
42-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

2"-12
2600
AMPS

63-6336
63-6337
63-6338
63-6339

32-5/8"
35-5/8"
39-5/8"
42-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"
