SECTION 3

PAGE 5

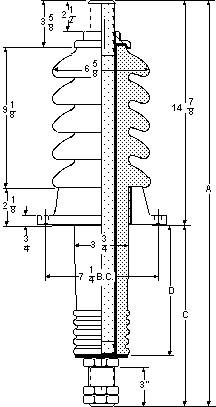

23 KV CLASS POWER BUSHINGS
150 KV BIL  208 THRU 2600 AMPS
CREEP 19" STRIKE 10"
THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL

STUD SIZE

PART NO.

A

C

D

1/2"-13
208
AMPS

63-6250
63-6251
63-6252
63-6253

28-3/8"
31-3/8"
35-3/8"
38-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13'
17
20"

5/8"-11
417
AMPS

63-6254
63-6255
63-6256
63-6257

28-3/8"
31-3/8"
35-3/8"
38-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13'
17
20"

3/4"-16
600
AMPS

63-6258
63-6259
63-6260
63-6261

28-3/8"
31-3/8"
35-3/8"
38-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13'
17
20"

1"-14
800
AMPS

63-6262
63-6263
63-6264
63-6265

28-3/8"
31-3/8"
35-3/8"
38-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13'
17
20"

1-1/8"-12
1000
AMPS

63-6266
63-6267
63-6268
63-6269

28-3/8"
31-3/8"
35-3/8"
38-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13'
17
20"

1-1/4"-12
1200
AMPS

63-6270
63-6271
63-6272
63-6273

28-3/8"
31-3/8"
35-3/8"
38-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13'
17
20"

1-1/2"-12
1600
AMPS

63-6274
63-6275
63-6276
63-6277

28-3/8"
31-3/8"
35-3/8"
38-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13'
17
20"

1-5/8"-12
2000
AMPS

63-6278
63-6279
63-6280
63-6281

28-3/8"
31-3/8"
35-3/8"
38-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13'
17
20"

1-3/4"-12
2300
AMPS

63-6282
63-6283
63-6284
63-6285

28-3/8"
31-3/8"
35-3/8"
38-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13'
17
20"

2"-12
2600
AMPS

63-6286
63-6287
63-6288
63-6289

28-3/8"
31-3/8"
35-3/8"
38-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13'
17
20"
