SECTION 3

PAGE 4

NORMANDY MACHINE CO. INC.
815 E. CHERRY ST., TROY, MISSOURI 63379
PHONE (636) 528-8913     (800) 526-6740
FAX (636) 528-8937 sales@normandymachine.com
Normandy Machine Co.

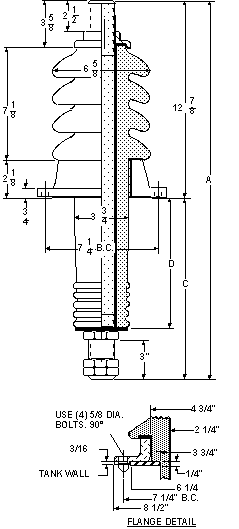

15 KV CLASS POWER BUSHINGS
110 KV BIL  208 THRU 2600 AMPS
CREEP 15" STRIKE 8 1/8"
THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL

STUD SIZE

PART NO.

A

C

D

1/2"-13
208
AMPS

63-6200
63-6201
63-6202
63-6203

26-3/8"
29-3/8"
33-3/8"
36-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

5/8"-11
417
AMPS

63-6204
63-6205
63-6206
63-6207

26-3/8"
29-3/8"
33-3/8"
36-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

3/4"-16
600
AMPS

63-6208
63-6209
63-6210
63-6211

26-3/8"
29-3/8"
33-3/8"
36-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1"-14
800
AMPS

63-6212
63-6213
63-6214
63-6215

26-3/8"
29-3/8"
33-3/8"
36-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/8"-12
1000
AMPS

63-6216
63-6217
63-6218
63-6219

26-3/8"
29-3/8"
33-3/8"
36-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/4"-12
1200
AMPS

63-6220
63-6221
63-6222
63-6223

26-3/8"
29-3/8"
33-3/8"
36-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/2"-12
1600
AMPS

63-6224
63-6225
63-6226
63-6227

26-3/8"
29-3/8"
33-3/8"
36-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-5/8"-12
2000
AMPS

63-6228
63-6229
63-6230
63-6231

26-3/8"
29-3/8"
33-3/8"
36-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-3/4"-12
2300
AMPS

63-6232
63-6233
63-6234
63-6235

26-3/8"
29-3/8"
33-3/8"
36-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

2"-12
2600
AMPS

63-6236
63-6237
63-6238
63-6239

26-3/8"
29-3/8"
33-3/8"
36-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"
