SECTION 3

PAGE 3

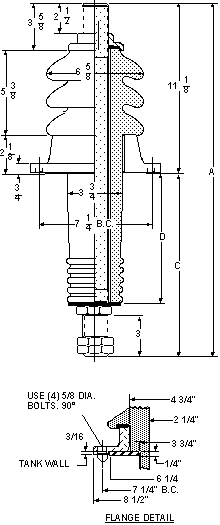

8.7 KV CLASS POWER BUSHINGS
75 KV BIL  208 THRU 2600 AMPS
CREEP 10 3/4" STRIKE 6 1/8"
THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL

STUD SIZE

PART NO.

A

C

D

1/2"-13
208
AMPS

63-6150
63-6151
63-6152
63-6153

24-5/8"
27-5/8"
31-5/8"
34-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

5/8"-11
417
AMPS

63-6154
63-6155
63-6156
63-6157

24-5/8"
27-5/8"
31-5/8"
34-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

3/4"-16
600
AMPS

63-6158
63-6159
63-6160
63-6161

24-5/8"
27-5/8"
31-5/8"
34-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1"-14
800
AMPS

63-6162
63-6163
63-6164
63-6165

24-5/8"
27-5/8"
31-5/8"
34-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/8"-12
1000
AMPS

63-6166
63-6167
63-6168
63-6169

24-5/8"
27-5/8"
31-5/8"
34-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/4"-12
1200
AMPS

63-6170
63-6171
63-6172
63-6173

24-5/8"
27-5/8"
31-5/8"
34-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/2"-12
1600
AMPS

63-6174
63-6175
63-6176
63-6177

24-5/8"
27-5/8"
31-5/8"
34-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-5/8"-12
2000
AMPS

63-6178
63-6179
63-6180
63-6181

24-5/8"
27-5/8"
31-5/8"
34-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-3/4"-12
2300
AMPS

63-6182
63-6183
63-6184
63-6185

24-5/8"
27-5/8"
31-5/8"
34-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

2"-12
2600
AMPS

63-6186
63-6187
63-6188
63-6189

24-5/8"
27-5/8"
31-5/8"
34-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"
