SECTION 3

PAGE 2

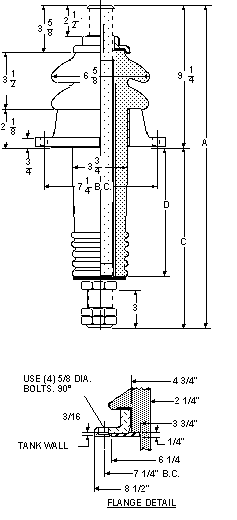

5 KV CLASS POWER BUSHINGS
60 KV BIL  208 THRU 2600 AMPS
CREEP 6 7/8" STRIKE 4 1/2"
THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL

STUD SIZE

PART NO.

A

C

D

1/2"-13
208
AMPS

63-6100
63-6101
63-6102
63-6103

22-3/4"
25-3/4"
29-3/4"
32-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

5/8"-11
417
AMPS

63-6104
63-6105
63-6106
63-6107

22-3/4"
25-3/4"
29-3/4"
32-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

3/4"-16
600
AMPS

63-6108
63-6109
63-6110
63-6111

22-3/4"
25-3/4"
29-3/4"
32-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1"-14
800
AMPS

63-6112
63-6113
63-6114
63-6115

22-3/4"
25-3/4"
29-3/4"
32-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/8"-12
1000
AMPS

63-6116
63-6117
63-6118
63-6119

22-3/4"
25-3/4"
29-3/4"
32-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/4"-12
1200
AMPS

63-6120
63-6121
63-6122
63-6123

22-3/4"
25-3/4"
29-3/4"
32-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/2"-12
1600
AMPS

63-6124
63-6125
63-6126
63-6127

22-3/4"
25-3/4"
29-3/4"
32-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-5/8"-12
2000
AMPS

63-6128
63-6129
63-6130
63-6131

22-3/4"
25-3/4"
29-3/4"
32-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-3/4"-12
2300
AMPS

63-6132
63-6133
63-6134
63-6135

22-3/4"
25-3/4"
29-3/4"
32-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

2"-12
2600
AMPS

63-6136
63-6137
63-6138
63-6139

22-3/4"
25-3/4"
29-3/4"
32-3/4"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"
