SECTION 3

PAGE 12

NORMANDY MACHINE CO. INC.
815 E. CHERRY ST., TROY, MISSOURI 63379
PHONE (636) 528-8913     (800) 526-6740
FAX (636) 528-8937 sales@normandymachine.com
Normandy Machine Co.

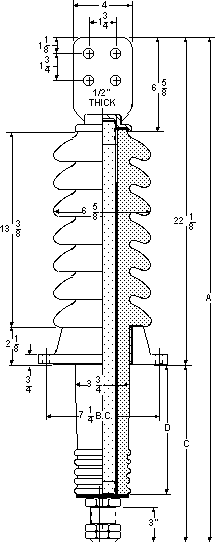

34.5 KV CLASS POWER BUSHINGS

200 KV BIL  208 THRU 2600 AMPS

CREEP 27 3/4" STRIKE 14 1/8"

THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL



STUD SIZE

PART NO.

A

C

D

1/2"-13
208
AMPS

63-6800
63-6801
63-6802
63-6803

35-5/8"
38-5/8"
42-5/8"
45-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

5/8"-11
417
AMPS

63-6805
63-6806
63-6807
63-6808

35-5/8"
38-5/8"
42-5/8"
45-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

3/4"-16
600
AMPS

63-6810
63-6811
63-6812
63-6813

35-5/8"
38-5/8"
42-5/8"
45-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1"-14
800
AMPS

63-6815
63-6816
63-6817
63-6818

35-5/8"
38-5/8"
42-5/8"
45-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/8"-12
1200
AMPS

63-6820
63-6821
63-6822
63-6823

35-5/8"
38-5/8"
42-5/8"
45-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/4"
1200
AMPS

63-6825
63-6826
63-6827
63-6828

35-5/8"
38-5/8"
42-5/8"
45-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/2"-12
1600
AMPS

63-6830
63-6831
63-6832
63-6833

35-5/8"
38-5/8"
42-5/8"
45-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-5/8"-12
2000
AMPS

63-6835
63-6836
63-6837
63-6838

35-5/8"
38-5/8"
42-5/8"
45-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-3/4"-12
2300
AMPS

63-6840
63-6841
63-6842
63-6843

35-5/8"
38-5/8"
42-5/8"
45-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

2"-12
2600
AMPS

63-6845
63-6846
63-6847
63-6848

35-5/8"
38-5/8"
42-5/8"
45-5/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"
