Normandy Machine Co.
NORMANDY MACHINE CO. INC.
815 E. CHERRY ST., TROY, MISSOURI 63379
PHONE (636) 528-8913     (800) 526-6740
FAX (636) 528-8937 sales@normandymachine.com
SECTION 3

PAGE 11

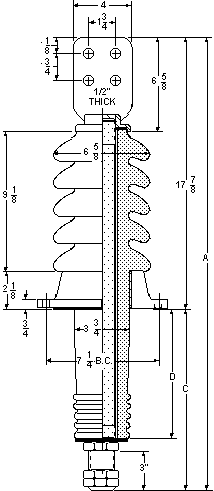

23 KV CLASS POWER BUSHINGS
150 KV BIL  208 THRU 2600 AMPS
CREEP 19" STRIKE 10"
THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL

STUD SIZE

PART NO.

A

C

D

1/2"-13
208
AMPS

63-6750
63-6751
63-6752
63-6753

31-3/8"
34-3/8"
38-3/8"
41-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

5/8"-11
417
AMPS

63-6755
63-6756
63-6757
63-6758

31-3/8"
34-3/8"
38-3/8"
41-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

3/4"-16
600
AMPS

63-6760
63-6761
63-6762
63-6763

31-3/8"
34-3/8"
38-3/8"
41-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1"-14
800
AMPS

63-6765
63-6766
63-6767
63-6768

31-3/8"
34-3/8"
38-3/8"
41-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/8"-12
1200
AMPS

63-6770
63-6771
63-6772
63-6773

31-3/8"
34-3/8"
38-3/8"
41-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/4"
1200
AMPS

63-6775
63-6776
63-6777
63-6778

31-3/8"
34-3/8"
38-3/8"
41-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/2"-12
1600
AMPS

63-6780
63-6781
63-6782
63-6783

31-3/8"
34-3/8"
38-3/8"
41-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-5/8"-12
2000
AMPS

63-6785
63-6786
63-6787
63-6788

31-3/8"
34-3/8"
38-3/8"
41-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-3/4"-12
2300
AMPS

63-6790
63-6791
63-6792
63-6793

31-3/8"
34-3/8"
38-3/8"
41-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

2"-12
2600
AMPS

63-6794
63-6795
63-6796
63-6797

31-3/8"
34-3/8"
38-3/8"
41-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"
