SECTION 3

PAGE 10

NORMANDY MACHINE CO. INC.
815 E. CHERRY ST., TROY, MISSOURI 63379
PHONE (636) 528-8913     (800) 526-6740
FAX (636) 528-8937 sales@normandymachine.com
Normandy Machine Co.

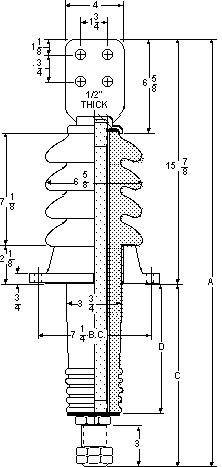

15 KV CLASS POWER BUSHINGS
110 KV BIL  208 THRU 2600 AMPS
CREEP 15" STRIKE 8 1/8"
THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL

STUD SIZE

PART NO.

A

C

D

1/2"-13
208
AMPS

63-6700
63-6701
63-6702
63-6703

29-3/8"
32-3/8"
36-3/8"
39-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

5/8"-11
417
AMPS

63-6705
63-6706
63-6707
63-6708

29-3/8"
32-3/8"
36-3/8"
39-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

3/4"-16
600
AMPS

63-6710
63-6711
63-6712
63-6713

29-3/8"
32-3/8"
36-3/8"
39-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1"-14
800
AMPS

63-6715
63-6716
63-6717
63-6718

29-3/8"
32-3/8"
36-3/8"
39-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/8"-12
1000
AMPS

63-6720
63-6721
63-6722
63-6723

29-3/8"
32-3/8"
36-3/8"
39-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/4"-12
1200
AMPS

63-6725
63-6726
63-6727
63-6728

29-3/8"
32-3/8"
36-3/8"
39-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-1/2"-12
1600
AMPS

63-6730
63-6731
63-6732
63-6733

29-3/8"
32-3/8"
36-3/8"
39-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-5/8"-12
2000
AMPS

63-6735
63-6736
63-6737
63-6738

29-3/8"
32-3/8"
36-3/8"
39-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

1-3/4"-12
2300
AMPS

63-6740
63-6741
63-6742
63-6743

29-3/8"
32-3/8"
36-3/8"
39-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"

2"-12
2600
AMPS

63-6745
63-6746
63-6747
63-6748

29-3/8"
32-3/8"
36-3/8"
39-3/8"

13-1/2"
16-1/2"
20-1/2"
23-1/2"

10"
13"
17"
20"
