SECTION 3

PAGE 1

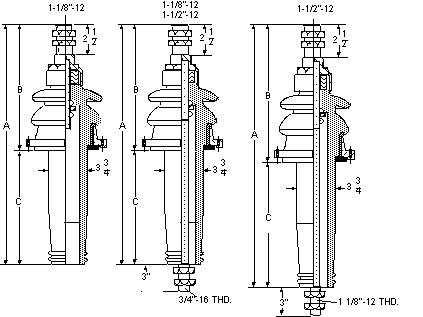

DRY TYPE APPARATUS BUSHING ASSEMBLIES
5 THRU 23 KV CLASS
400 THRU 1200 AMP


BUSHING   ASSEMBLY    NUMBER



400 AMP
DRAWLEAD
1-1/8"-12
POST

600 AMP
3/4" STUD
1-1/8"-12
POST

600 AMP
3/4" STUD
1-1/2"-12
POST

1200 AMP
1-1/8" STUD
1-1/2"-12
POST

CLASS

SKIRTS

BIL

"A"

"B"

"C"

53-5001
53-5002
53-5003

53-5005
53-5006
53-5007

53-5010
53-5011
53-5012

53-5015
53-5016
53-5017

5
5
5

2
2
2

60
60
60

20-7/8"
23-7/8"
30-7/8"

10-7/8"
10-7/8"
10-7/8"

10"
13"
20"

53-5020
53-5021
53-5022

53-5025
53-5026
53-5027

53-5030
53-5031
53-5032

53-5035
53-5036
53-5037

8.7
8.7
8.7

3
3
3

75
75
75

22-3/4"
25-3/4"
32-3/4"

12-3/4"
12-3/4"
12-3/4"

10"
13"
20"

53-5040
53-5041
53-5042

53-5045
53-5046
53-5047

53-5050
53-5051
53-5052

53-5055
53-5056
53-5057

15
15
15

4
4
4

110
110
110

24-1/2"
27-1/2"
37 1/2"

14-1/2"
14-1/2"
14-1/2"

10"
13
20

53-5060
53-5061
53-5062

53-5065
53-5066
53-5067

53-5070
53-5071
53-5072

53-5075
53-5076
53-5077

23
23
23

5
5
5

150
150
150

26-1/2"
29-1/2"
36-1/2"

16-1/2"
16-1/2"
16-1/2"

10"
13"
20"
