SECTION 2

PAGE 5

NORMANDY MACHINE CO. INC.
815 E. CHERRY ST., TROY, MISSOURI 63379
PHONE (636) 528-8913     (800) 526-6740
FAX (636) 528-8937 sales@normandymachine.com
Normandy Machine Co.

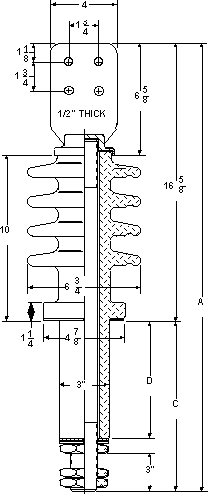

15 KV CLASS POWER BUSHINGS
110 KV BIL 208 THRU 2000 AMPS
CREEP 15 1/2"          STRIKE 8 1/4"
THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL

STUD SIZE

PART NO.

A

C

D

1/2"-13
208
AMPS

63-6532
63-6533
63-6534
63-6535

25-3/8"
32-3/8"
39-3/8"
42-3/8"

10-1/2"
17-1/2"
24-1/2"
27-1/2"

7"
14"
21"
24"

5/8"-11
450
AMPS

63-6536
63-6537
63-6538
63-6539

25-3/8"
32-3/8"
39-3/8"
42-3/8"

10-1/2"
17-1/2"
24-1/2"
27-1/2"

7"
14"
21"
24"

3/4"-16
600
AMPS

63-6540
63-6541
63-6542
63-6543

25-3/8"
32-3/8"
39-3/8"
42-3/8"

10-1/2"
17-1/2"
24-1/2"
27-1/2"

7"
14"
21"
24"

1"-14
800
AMPS

63-6544
63-6545
63-6546
63-6547

25-3/8"
32-3/8"
39-3/8"
42-3/8"

10-1/2"
17-1/2"
24-1/2"
27-1/2"

7"
14"
21"
24"

1-1/8"-12
1000
AMPS

63-6548
63-6549
63-6550
63-6551

25-3/8"
32-3/8"
39-3/8"
42-3/8"

10-1/2"
17-1/2"
24-1/2"
27-1/2"

7"
14"
21"
24"

1-1/4"-12
1200
AMPS

63-6552
63-6553
63-6554
63-6555

25-3/8"
32-3/8"
39-3/8"
42-3/8"

10-1/2"
17-1/2"
24-1/2"
27-1/2"

7"
14"
21"
24"

1-1/2"-12
1600
AMPS

63-6556
63-6557
63-6558
63-5559

25-3/8"
32-3/8"
39-3/8"
42-3/8"

10-1/2"
17-1/2"
24-1/2"
27-1/2"

7"
14"
21"
24"

1-5/8"-12
2000
AMPS

63-6560
63-6561
63-6562
63-6563

25-3/8"
32-3/8"
39-3/8"
42-3/8"

10-1/2"
17-1/2"
24-1/2"
27-1/2"

7"
14"
21"
24"
