SECTION 2

PAGE 4

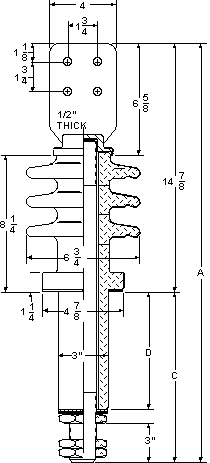

8.7 KV CLASS POWER BUSHINGS
75 KV BIL 208 THRU 2000 AMPS
CREEP 10 7/8" STRIKE 6 1/4"
THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL




STUD SIZE

PART NO.

A

C

D

1/2"-13
208
AMPS.

63-6500
63-6501
63-6502
63-6503

23-5/8"
30-5/8"
37-5/8"
40-5/8"

10-1/2"
17-1/2"
24-1/2"
27-1/2"

7"
14"
21"
24"

5/8"-11
450
AMPS

63-6504
63-6505
63-6506
63-6507

23-5/8"
30-5/8"
37-5/8"
40-5/8"

10-1/2"
17-1/2"
24-1/2"
27-1/2"

7"
14"
21"
24"

3/4"-16
600
AMPS

63-6508
63-6509
63-6510
63-6511

23-5/8"
30-5/8"
37-5/8"
40-5/8"

10-1/2"
17-1/2"
24-1/2"
27-1/2"

7"
14"
21"
24"

1"-14
800
AMPS

63-6512
63-6513
63-6514
63-6515

23-5/8"
30-5/8"
37-5/8"
40-5/8"

10-1/2"
17-1/2"
24-1/2"
27-1/2"

7"
14"
21"
24"

1-1/8"-12
1000
AMPS

63-6516
63-6517
63-6518
63-6519

23-5/8"
30-5/8"
37-5/8"
40-5/8"

10-1/2"
17-1/2"
24-1/2"
27-1/2"

7"
14"
21"
24"

1-1/4"-12
1200
AMPS

63-6520
63-6521
63-6522
63-6523

23-5/8"
30-5/8"
37-5/8"
40-5/8"

10-1/2"
17-1/2"
24-1/2"
27-1/2"

7"
14"
21"
24"

1-1/2"-12
1600
AMPS

63-6524
63-6525
63-6526
63-6527

23-5/8"
30-5/8"
37-5/8"
40-5/8"

10-1/2"
17-1/2"
24-1/2"
27-1/2"

7"
14"
21"
24"

1-5/8"-12
2000
AMPS

63-6528
63-6529
63-6530
63-6531

23-5/8"
30-5/8"
37-5/8"
40-5/8"

10-1/2"
17-1/2"
24-1/2"
27-1/2"

7"
14"
21"
24"
