SECTION 2

PAGE 3

NORMANDY MACHINE CO. INC.
815 E. CHERRY ST., TROY, MISSOURI 63379
PHONE (636) 528-8913     (800) 526-6740
FAX (636) 528-8937 sales@normandymachine.com
Normandy Machine Co.

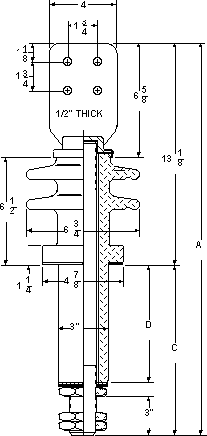

8.7 & 15 KV CLASS HIGH CURRENT BUSHING ASSEMBLIES DRAWLEAD & STUD TYPE
75 AND 110 KV BIL
THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL


PART NO.

FIG.

KV

POST

AMPS

TYPE

A

B

C

D

E

63-6420
63-6421
63-6422

2
2
2

8.7
8.7
8.7

1-1/8"
1-1/8"
1-1/8"

600
600
600

DRAWLEAD
DRAWLEAD

DRAWLEAD

16-7/8"
23-7/8"
30-7/8"

9-7/8"
9-7/8"
9-7/8"

---
---
---

7"
14"
21"

6-1/2"
6-1/2"
6-1/2"

63-6423
63-6424
63-6425

2
2
2

15
15
15

1-1/8"
1-1/8"
1-1/8"

600
600
600

DRAWLEAD
DRAWLEAD

DRAWLEAD

18-5/8"
25-5/8"
32-5/8"

11-5/8"
11-5/8"
11-5/8"

---
---
---

7"
14"
21"

8-1/4"
8-1/4"
8-1/4"

63-6430
63-6431
63-6432

1
1
1

8.7
8.7
8.7

1-1/8"
1-1/8"
1-1/8"

1200
1200
1200

1-1/8"-12 STUD
1-1/8"-12 STUD
1-1/8"-12 STUD

20-3/8"
27-3/8"
34-3/8"

9-7/8"
9-7/8"
9-7/8"

10-1/2"
17-1/2"
24-1/2"

7"
14"
21"

6-1/2"
6-1/2"
6-1/2"

63-6433
63-6434
63-6435

1
1
1

8.7
8.7
8.7

1-1/2"
1-1/2"
1-1/2"

1600
1600
1600

1-1/2"-12 STUD
1-1/2"-12 STUD
1-1/2"-12 STUD

21-1/4"
28-1/4"
35-1/4"

10-3/4"
10-3/4"
10-3/4"

10-1/2"
17-1/2"
24-1/2"

7"
14"
21"

6-1/2"
6-1/2"
6-1/2"

63-6436
63-6437
63-6438

1
1
1

15
15
15

1-1/8"
1-1/8"
1-1/8"

1200
1200
1200

1-1/8"-12 STUD
1-1/8"-12 STUD
1-1/8"-12 STUD

22-1/8"
39-1/8"
36-1/8"

11-5/8"
11-5/8"
11-5/8"

10-1/2"
17-1/2"
24-1/2"

7"
14"
21"

8-1/4"
8-1/4"
8-1/4"

63-6439
63-6440
63-6441

1
1
1

15
15
15

1-1/2"
1-1/2"
1-1/2"

1600
1600
1600

1-1/2"-12 STUD
1-1/2"-12 STUD
1-1/2"-12 STUD

23"
30"
37"

12-1/2"
12-1/2"
12-1/2"

10-1/2"
17-1/2"
24-1/2"

7"
14"
21"

8-1/4"
8-1/4"
8-1/4"
