SECTION 2

PAGE 1

NORMANDY MACHINE CO. INC.
815 E. CHERRY ST., TROY, MISSOURI 63379
PHONE (636) 528-8913     (800) 526-6740
FAX (636) 528-8937 sales@normandymachine.com
Normandy Machine Co.

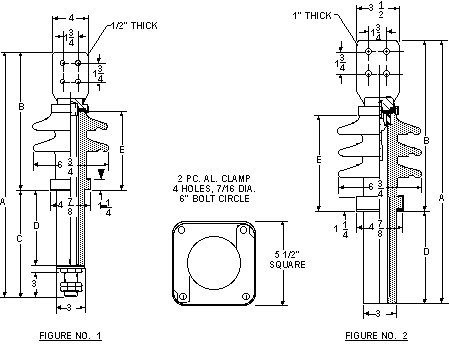

STANDARD HV BUSHING ASSEMBLIES

15-23 KV CLASS 95 & 150 KV BIL EXTERNAL AND INTERNAL CLAMPING

2 3/16" DIA. SHANK FOR MOUNTING IN 2 1/4" TANK HOLE

THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL




EXTERNAL
CLAMP

KV CLASS

AMPS

CONDUCTOR
 SIZE

CONNECTOR
TYPE & SIZE

"A"

"B"

"C"

"D"

103-0207
103-0208
103-0210

15
15
15

125
125
125

3/8"
3/8"
3/8"

7/16" EYEBOLT
7/16" EYEBOLT
5/8" EYEBOLT

14"
17-3/4"
14-7/8"

8-3/8"
8-3/8"
9-1/4"

5-5/8"
9-3/8"
5-5/8"

1-1/2"
1-1/2"
1-1/2"

103-0212
103-0213
103-0215

15
15
15

125
125
208

3/8"
3/8"
1/2"

MOD. "G" SPADE
MOD. "G" SPADE
5/8" EYEBOLT

15-1/8"
18-7/8"
15-1/8"

9-1/2"
9-1/2"
9-1/4"

5-5/8"
9-3/8"
5-7/8"

1-1/2"
1-1/2"
1-3/4"

103-0216
103-0218
103-0220

15
15
15

208
208
417

1/2"
1/2"
5/8"

5/8" EYEBOLT
MOD. "H" SPADE
13/16" EYEBOLT

18-7/8"
20-1/8"
15-3/8"

9-1/4"
10-1/2"
9-1/2"

9-5/8"
9-5/8"
5-7/8"

1-3/4"
1-3/4"
1-3/4"

103-0221
103-0222
103-0225

15
15
15

417
417
600

5/8"
5/8"
3/4"

13/16" EYEBOLT
MOD. "G" SPADE
"G" SPADE

19-1/8"
15-3/8"
20-7/8"

9-1/2"
9-1/2"
11"

9-5/8"
5-7/8"
9-7/8"

1-3/4"
1-3/4"
1-3/4"

103-0260
103-0261
103-0264

23
23
23

125
125
125

3/8"
3/8"
3/8"

7/16" EYEBOLT
7/16" EYEBOLT
5/8" EYEBOLT

16-1/2"
20-1/4"
17-
1/2"

10-7/8"
10-7/8"
11-7/8"

5-5/8"
7-7/8"
5-5/8"

1-1/2"
1-1/2"
1-1/2"

103-0270
103-0271
103-0275

23
23
23

125
125
208

3/8"
3/8"
1/2"

MOD. "G" SPADE
MOD. "G" SPADE
5/8" EYEBOLT

17-5/8"
21-3/8"
21-5/8"

12"
12"
12"

5-5/8"
7-7/8"
7-7/8"

1-1/2"
1-1/2"
1-3/4"

103-0280
103-0285
103-0292
103-0293

23
23
23
23

208
208
417
417

1/2"
1/2"
5/8"
5/8"

13/16" EYEBOLT
MOD. "H" SPADE
13/16" EYEBOLT
MOD. "G" SPADE

21-5/8"
19"
21-5/8"
17-7/8"

12"
13-1/8"
12"
12"

7-7/8"
5-7/8"
7-7/8"
5-7/8"

1-3/4"
1-3/4"
1-3/4"
1-3/4"
