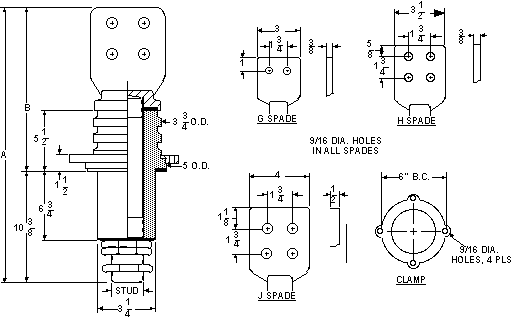

5 KV CLASS HIGH CURRENT BUSHING ASSEMBLIES
75 K.V. BIL., SIDEWALL OR COVER MOUNTED FOR MOUNTING IN 3-3/8" DIA. TANK OPENING
THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL

PART NO

AMPS

STUD SIZE

CONNECTOR TYPE

A

B

92-9001-5
92-9002-5
92-9003-5

450
600
800

5/8"-11
3/4"-16
1"-14

"G" SPADE
"G" SPADE
"G" SPADE

16-3/4"
16-3/4"
16-3/4"

10-1/8"
10-1/8"
10-1/8"

92-9010-5
92-9011-5
92-9012-5

600
800
1000

3/4"-16
1"-14
1-1/8"-12

"H" SPADE
"H" SPADE
"H" SPADE

18"
18"
18"

11-3/8"
11-3/8"
11-3/8"

92-9013-5
92-9014-5
92-9015-5

1200
1600
2000

1-1/4"-12
1-1/2"-12
1-5/8"-12

"H" SPADE
"H" SPADE
"H" SPADE

18"
18"
18"

11-3/8"
11-3/8"
11-3/8"

92-9016-5
92-9020-5
92-9021-5

2600
800
1000

2"-12
1"-14
1-1/8"-12

"H" SPADE
"J" SPADE
"J" SPADE

18"
19-1/4"
19-1/4"

11-3/8"
12-5/8"
12-5/8"

92-9022-5
92-9023-5
92-9024-5

1200
1600
2000

1-1/4"-12
1-1/2"-12
1-5/8"-12

"J" SPADE
"J" SPADE
"J" SPADE

19-1/4"
19-1/4"
19-1/4"

12-5/8"
12-5/8"
12-5/8"

92-9025-5
92-9026-5

2200
2600

1-3/4"-12
2"-12

"J" SPADE
"J" SPADE

19-1/4"
19-1/4"

12-5/8"
12-5/8"
