SECTION 1

PAGE 7

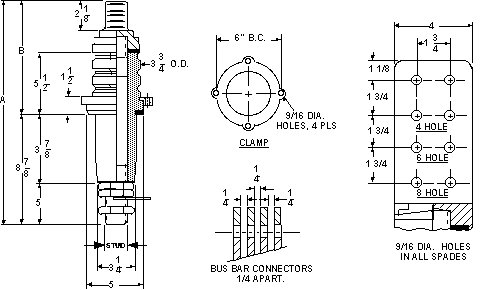

5 KV CLASS HIGH CURRENT BUSHING ASSEMBLIES
60 K.V. BIL., SIDEWALL OR COVER MOUNTED FOR MOUNTING IN 3-3/8" DIA. TANK OPENING

THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL

PART NO.

AMPS

STUD SIZE

CONNECTOR TYPE

A

B

92-9030
92-9031
92-9032

600
800
1000

3/4"-16
1"-14
1-1/8"-12

1 1/8"-12 TERM POST
1-1/8"-12 TERM POST
1-1/8"-12 TERM POST

17-3/4"
17-3/4"
17-3/4"

9"
9"
9"

92-9033
92-9034
92-9035

1000
1200
1600

1-1/8"-12
1-1/4"-12
1-1/2"-12

1-1/2"-12 TERM POST
1-1/2"-12 TERM POST
1-1/2"-12 TERM POST

19-5/8"
19-5/8"
19-5/8"

10-7/8"
10-7/8"
10-7/8"

92-9036
92-9037
92-9038

1600
2000
2600

1-1/2"-12
1-5/8"-12
1-3/4"-12

2"-12 TERM POST
2"-12 TERM POST
2"-12 TERM POST

18"
18"
18"

9-1/4"
9-1/4"
9-1/4"

92-9039
92-9045
92-9046

3200
1000
1200

2"-12
1-1/8"-12
1-1/4"-12

2"-12 TERM POST
(2) 1/4" BUS BAR 4 HOLE
(2) 1/4" BUS BAR 4 HOLE

18"
21-1/4"
21-1/4"

9-1/4"
12-1/2"
12-1/2"

92-9047
92-9048
92-9049

1600
2000
2600

1-1/2"-12
1-5/8"-12
1-3/4"-12

(2) 1/4" BUS BAR 4 HOLE
(2) 1/4" BUS BAR 4 HOLE
(4) 1/4" BUS BAR 4 HOLE

21-1/4"
21-1/4"
21-1/4"

12-1/2"
12-1/2"
12-1/2"

92-9050
92-9051
92-9055

3200
3600
800

2"-12
2-1/8"-12
1"-14

(4) 1/4" BUS BAR 4 HOLE
(4) 1/4" BUS BAR 4 HOLE
6 HOLE SPADE 1/2" THICK

21-1/4"
21-1/4"
22"

12-1/2"
12-3/8"
13-1/4"

92-9056
92-9057
92-9058

1000
1200
1600

1-1/8"-12
1-1/4"-12
1-1/2"-12

6 HOLE SPADE 1/2" THICK
6 HOLE SPADE 1/2" THICK
6 HOLE SPADE 1/2" THICK

22"
22"
22"

13-1/4"
13-1/4"
13-1/4"

92-9059
92-9260
92-9061

2000
2400
3000

1-5/8"-12
1-3/4"-12
2"-12

6 HOLE SPADE1/2" THICK
6 HOLE SPADE 3/4" THICK
6 HOLE SPADE 3/4" THICK

22"
22"
22"

13-1/4"
13-1/4"
13-1/4"

92-9065
92-9066
92-9067

800
1000
1200

1"-14
1-1/8"-12
1-1/4"-12

8 HOLE SPADE 1/2" THICK
8 HOLE SPADE 1/2" THICK
8 HOLE SPADE 1/2" THICK

22-7/8"
22-7/8"
22-7/8"

14-1/8"
14-1/8"
14-1/8"

92-9068
92-9069
92-9070

1600
2000
2600

1-1/2"-12
1-5/8"-12
1-3/4"-12

8 HOLE SPADE 1/2" THICK
8 HOLE SPADE 1/2" THICK
8 HOLE SPADE 3/4" THICK

22-7/8"
22-7/8"
23-3/4"

14-1/8"
14-1/8"
15"

92-9071
92-9072

3200
3600

2"-12
2-1/8"-12

8 HOLE SPADE1/4" THICK
8 HOLE SPADE 1/4" THICK

23-3/4"
23-3/4"

15"
14-7/8"
