SECTION 1

PAGE 6

NORMANDY MACHINE CO. INC.
815 E. CHERRY ST., TROY, MISSOURI 63379
PHONE (636) 528-8913     (800) 526-6740
FAX (636) 528-8937 sales@normandymachine.com
Normandy Machine Co.

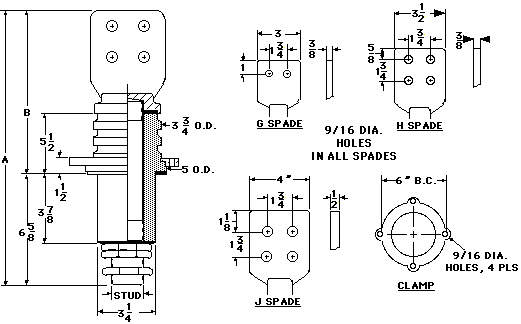

5 KV CLASS HIGH CURRENT BUSHING ASSEMBLIES
60 K.V. BIL., SIDEWALL OR COVER MOUNTED FOR MOUNTING IN 3-3/8" DIA. TANK OPENING
THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL

5 kv Class High Current

PART NO

AMPS

STUD SIZE

CONNECTOR TYPE

"A"

"B"

92-9001
92-9002
92-9003

450
600
800

5/8"-11
3/4"-16
1"-14

"G" SPADE
"G" SPADE
"G" SPADE

16-1/4"
16-1/4"
16-1/4"

9-5/8"
9-5/8"
9-5/8"

92-9010
92-9011
92-9012

600
800
1000

3/4"-16
1"-14
1-1/8"-12

"H" SPADE
"H" SPADE
"H" SPADE

17-5/8"
17-5/8"
17-5/8"

11"
11"
11"

92-9013
92-9014
92-9015

1200
1600
2000

1-1/4"-12
1-1/2"-12
1-5/8"-12

"H" SPADE
"H" SPADE
"H" SPADE

17-5/8"
17-5/8"
17-5/8"

11"
11"
11"

92-9016
92-9020
92-9021

2600
800
1000

2"-12
1"-14
1-1/8"-12

"H" SPADE
"J" SPADE
"J" SPADE

17-5/8"
19"
19"

11"
12-3/8"
12-3/8"

92-9022
92-9023
92-9024

1200
1600
2000

1-1/4"-12
1-1/2"-12
1-5/8"-12

"J" SPADE
"J" SPADE
"J" SPADE

19"
19"
19"

12-3/8"
12-3/8"
12-3/8"

92-9025
92-9026

2200
2600

1-3/4"-12
2"-12

"J" SPADE
"J" SPADE

19"
19"

12-3/8"
12-3/8"
