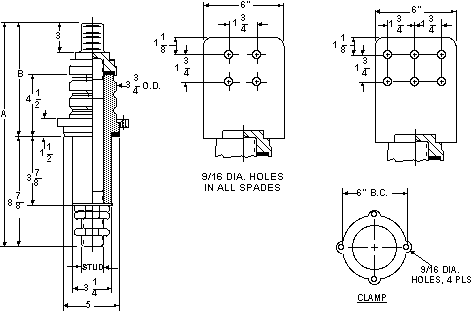

2.5 kv class high current bushing assemblies

45 KV BIL SIDEWALL OR COVER MOUNTED FOR MOUNTING IN 3 3/8" DIA. TANK OPENING

THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL

PART NO.

AMPS

STUD SIZE

CONNECTOR TYPE

A

B

82-8075
82-8076
82-8077

600
800
1000

3/4"-16
1"-14
1-1/8"-12

3/4"-16 TERM POST
1"-14 TERM POST
1-1/8"-12 TERM POST

17"
17"
17"

8-1/8"
8-1/8"
8-1/8"

82-8078
82-8079
82-8080

1200
1600
2000

1-1/4"-12
1-1/2"-12
1-5/8"-12

1-1/4"-12 TERM POST
1-1/2"-12 TERM POST
1-5/8"-12 TERM POST

17"
17"
17"

8-1/8"
8-1/8"
8-1/8"

82-8081
82-8082
82-8083

2600
3200
3600

1-3/4"-12
2"-12
2-1/8"-12

1-3/4"-12 TERM POST
2"-12 TERM POST
2-1/8"-12 TERM POST

17"
17"
17"

8-1/8"
8-1/8"
8-1/8"

82-8085
82-8086
82-8087

2000
2000
2600

1-5/8"-12
1-5/8"-12
1-5/8"-12

4 HOLE SPADE 1/2" THICK
4 HOLE SPADE 3/4" THICK
4 HOLE SPADE 1/2" THICK

20-1/8"
20-1/8"
20-1/8"

11-1/4"
11-1/4"
11-1/4"

82-8088
82-8089
82-8090

2600
3200
3200

1-3/4"-12
2"-12
2"-12

4 HOLE SPADE 3/4" THICK
4 HOLE SPADE 1/2" THICK
4 HOLE SPADE 3/4" THICK

20-1/8"
20-1/8"
20-1/8"

11-1/4"
11-1/4"
11-1/4"

82-8091
82-8092
82-8095

3200
3600
2000

2-1/8"-12
2-1/8"-12
1-5/8"-12

4 HOLE SPADE 1/2" THICK
4 HOLE SPADE 3/4" THICK
4 HOLE SPADE 1/2" THICK

20-1/8"
20-1/8"
20-1/8"

11-1/4"
11-1/4"
11-1/4"

82-8096
82-8097
82-8098
82-8099

2000
2600
2600
3200

1-5/8"-12
1-3/4"-12
1-3/4"-12
2"-12

6 HOLE SPADE 3/4" THICK
6 HOLE SPADE 1/2" THICK
6 HOLE SPADE 3/4" THICK
6 HOLE SPADE 1/2" THICK

20-1/8"
20-1/8"
20-1/8"
20-1/8"

11-1/4"
11-1/4"
11-1/4"
11-1/4"

82-8100
82-8101
82-8102

3200
3200
3600

2"-12
2-1/8"-12
2-1/8"-12

6 HOLE SPADE 3/4" THICK
6 HOLE SPADE 1/2" THICK
6 HOLE SPADE 3/4" THICK

20-1/8"
20-1/8"
20-1/8"

11-1/4"
11-1/4"
11-1/4"
