SECTION 1

PAGE 4

NORMANDY MACHINE CO. INC.
815 E. CHERRY ST., TROY, MISSOURI 63379
PHONE (636) 528-8913     (800) 526-6740
FAX (636) 528-8937 sales@normandymachine.com
Normandy Machine Co.

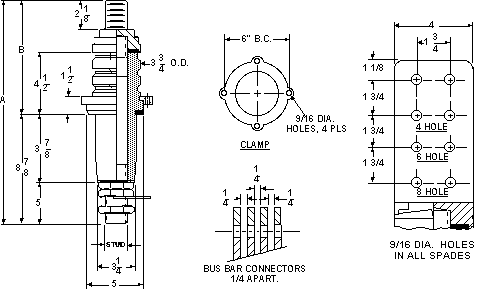

2.5 kv class high current bushing assemblies

45 KV BIL SIDEWALL OR COVER MOUNTED FOR MOUNTING IN 3 3/8" DIA. TANK OPENING

THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL

PART NO.

AMPS

STUD SIZE

CONNECTOR SIZE

A

B

82-8030
82-8031
82-8032

600
800
1000

3/4"-16
1"-14
1-1/8"-12

1-1/8"-12 TERM POST
1-1/8"-12 TERM POST
1-1/8"-12 TERM POST

16-3/4"
16-3/4"
16-3/4"

7-7/8"
7-7/8"
7-7/8"

82-8033
82-8034
82-8035

1000
1200
1600

1-1/8"-12
1-1/4"-12
1-1/2"-12

1-1/2"-12 TERM POST
1-1/2"-12 TERM POST
1-1/2"-12 TERM POST

18-5/8"
18-5/8"
18-5/8"

9-3/4"
9-3/4"
9-3/4"

82-8036
82-8037
82-8038

1600
2000
2600

1-1/2"-12
1-5/8"-12
1-3/4"-12

2"-12 TERM POST
2"-12 TERM POST
2"-12 TERM POST

17"
17"
17"

8-1/8"
8-1/8"
8-1/8"

82-8039
82-8045
82-8046

3200
1000
1200

2"-12
1-1/8"-12
1-1/4"-12

2"-12 TERM POST
(2) 1/4" BUS BAR 4 HOLE SPADE
(2) 1/4" BUS BAR 4 HOLE SPADE

17"
20-1/4"
20-1/4"

8-1/8"
11-3/8"
11-3/8"

82-8047
82-8048
82-8049

1600
2000
2600

1-1/2"-12
1-5/8"-12
1-3/4"-12

(2) 1/4" BUS BAR 4 HOLE SPADE
(2) 1/4" BUS BAR 4 HOLE SPADE
(4) 1/4" BUS BAR 4 HOLE SPADE

20-1/4"
20-1/4"
20-1/4"

11-3/8"
11-3/8"
11-3/8"

82-8050
82-8051
82-8055

3200
3600
800

2"-12
2-1/8"-12
1"-14

(4) 1/4" BUS BAR4 HOLE SPADE
(4) 1/4" BUS BAR 4 HOLE SPADE
6 HOLE SPADE 1/2" THICK

20-1/4"
20-1/4"
21"

11-3/8"
11-3/8"
12-1/8"

82-8056
82-8057
82-8058

1000
1200
1600

1-1/8"-12
1-1/4"-12
1-1/2"-12

6 HOLE SPADE 1/2" THICK
6 HOLE SPADE 1/2" THICK
6 HOLE SPADE 1/2" THICK

21"
21"
21"

12-1/8"
12-1/8"
12-1/8"

82-8059
82-8060
82-8061

2000
2400
3000

1-5/8"-12
1-3/4"-12
2"-12

6 HOLE SPADE 1/2" THICK
6 HOLE SPADE 3/4" THICK
6 HOLE SPADE 3/4" THICK

21"
21"
21"

12-1/8"
12-1/8"
12-1/8"

82-8065
82-8066
82-8067

800
1000
1200

1"-14
1-1/8"-12
1-1/4"-12

8 HOLE SPADE 1/2" THICK
8 HOLE SPADE 1/2" THICK
8 HOLE SPADE 1/2" THICK

21-7/8"
21-7/8"
21-7/8"

13"
13"
13"

82-8068
82-8069
82-8070

1600
2000
2600

1-1/2"-12
1-5/8"-12
1-3/4"-12

8 HOLE SPADE 1/2" THICK
8 HOLE SPADE 1/2" THICK
8 HOLE SPADE 3/4" THICK

21-7/8"
21-7/8"
22-3/4"

13"
13"
13-7/8"

82-8071
82-8072

3200
3600

2"-12
2-1/8"-12

8 HOLE SPADE 3/4" THICK
8 HOLE SPADE 3/4" THICK

22-3/4"
22-3/4"

13-7/8"
13-7/8"
