2.5 kv class high current bushing assemblies

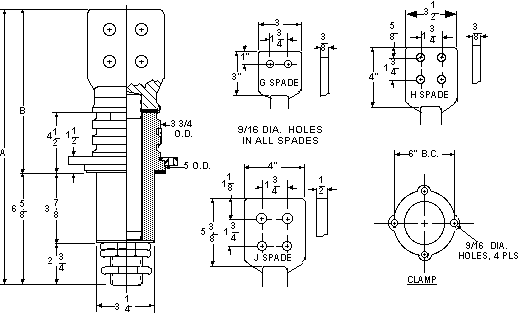

45 KV BIL SIDEWALL OR COVER MOUNTED FOR MOUNTING IN 3 3/8" DIA. TANK OPENING

THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL

PART NO.

AMPS.

STUD SIZE

CONNECTOR SIZE

A

B

82-8001
82-8002
82-8003

450
600
800

5/8"-11
3/4"-16
1"-14

"G" SPADE
"G" SPADE
"G" SPADE

15-1/8"
15-1/8"
15-1/8"

8-1/2"
8-1/2"
8-1/2"

82-8010
82-8011
82-8012

600
800
1000

3/4"-16
1"-14
1-1/8"-12

"H" SPADE
"H" SPADE
"H" SPADE

16-1/2"
16-1/2"
16-1/2"

9-7/8"
9-7/8"
9-7/8"

82-8013
82-8014
82-8015

1200
1600
2000

1-1/4"-12
1-1/2"-12
1-5/8"-12

"H" SPADE
"H" SPADE
"H" SPADE

16-1/2"
16-1/2"
16-1/2"

9-7/8"
9-7/8"
9-7/8"

82-8016
82-8020
82-8021

2600
800
1000

2"-12
1"-14
1-1/8"-12

"H" SPADE
"J" SPADE
"J" SPADE

16-1/2"
17-3/4"
17-3/4"

9-7/8"
11-1/8"
11-1/8"

82-8022
82-8023
82-8024

1200
1600
2000

1-1/4"-12
1-1/2"-12
1-5/8"-12

"J" SPADE
"J" SPADE
"J" SPADE

17-3/4"
17-3/4"
17-3/4"

11-1/8"
11-1/8"
11-1/8"

82-8025
82-8026

2200
2600

1-3/4"-12
2"-12

"J" SPADE
"J" SPADE

17-3/4"
17-3/4"

11-1/8"
11-1/8"
