SECTION 1

PAGE 1

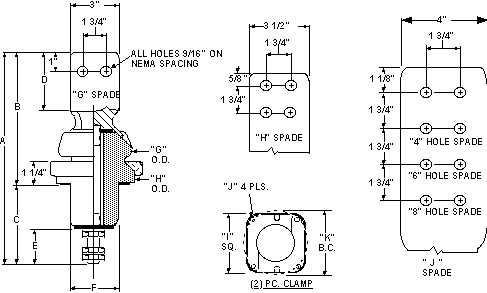

1.2 KV standard bushing assemblies

30 KV BIL SIDEWALL MOUNTING, SPADE TYPE FOR 2-11/16", 3-1/8" AND 3-15/16" DIA. TANK HOLES

THE RATINGS ARE GIVEN FOR THESE BUSHING ASSEMBLIES ARE BASED ON USE IN AN OUTDOOR LIQUID FILLED TRANSFORMER WITH LOWER END OF BUSHING SUBMERGED UNDER OIL



PART NO.

STUD DIA

AMPS

SPADE

A

B

C

D

E

F

G

H

I

J

K

TYPE

THICK

62-6001
62-6005
62-6007

1"
3/4"
3/4"

800
600
600

G
H
6 HOLE

3/8"
3/8"
1/2"

10-1/8"
11-3/8"
12-3/4"

6 1/8”
7-5/8"
9"

4"
3-3/4"
3-3/4"

3"
4"
5-1/2"

2-1/4"
2"
2"

2-5/8"
2-5/8"
2-5/8"

3-1/2"
3-1/2"
3-1/2"

3-15/16"
3-15/16"
3-15/16"

4-7/16"
4-7/16"
4-7/16"

7/16"
7/16"
7/16"

4-5/8" B.C.
4-5/8" B.C.
4-5/8" B.C.

62-6009
62-6015
62-6017

3/4"
1"
1"

600
800
800

8 HOLE
H
6 HOLE

1/2"
3/8"
1/2"

14-1/8"
11-5/8"
13"

10-3/8"
7-5/8"
9"

3-3/4"
4"
4"

6-3/4"
4"
5-1/2"

2"
2-1/4"
2-1/4"

2-5/8"
2-5/8"
2-5/8"

3-1/2"
3-1/2"
3-1/2"

3-15/16"
3-15/16"
3-15/16"

4-7/16"
4-7/16"
4-7/16"

7/16"
7/16"
7/16"

4-5/8" B.C.
4-5/8" B.C.
4-5/8" B.C.

62-6019
62-6025
62-6027

1"
1-1/8"
1-1/8"

800
1000
1000

8 HOLE
H
4 HOLE

1/2"
3/8"
1/2"

14-3/8"
12"
13"

10-3/8"
7-5/8"
9"

4"
4-3/8"
4"

6-3/4"
4"
5-1/2"

2-1/4"
2-1/4"
2-1/4"

2-5/8"
2-5/8"
2-5/8"

3-1/2"
3-1/2"
3-1/2"

3-15/16"
3-15/16"
3-15/16"

4-7/16"
4-7/16"
4-7/16"

7/16"
7/16"
7/16"

4-5/8" B.C.
4-5/8" B.C.
4-5/8" B.C.

62-6029
62-6045
62-6035

1-1/8"
1-1/8"
1-1/4"

1000
1000
1200

8 HOLE
4 HOLE
H

1/2"
3/8"
3/8"

14-3/8"
11-7/8"
12-1/8"

10-3/8"
7-3/4"
7-5/8

4"
4-1/8"
4-1/2"

6-3/4"
4"
4"

2-1/4"
2-7/16"
2-3/4"

2-5/8"
2-5/8"
2-5/8"

3-1/2"
3-1/2"
3-1/2"

3-15/16"
3-15/16"
3-15/16"

4-7/16"
4-7/16"
4-7/16"

7/16"
7/16"
7/16"

4-5/8" B.C.
4-5/8" B.C.
4-5/8" B.C.

62-6037
62-6039
62-6051

1-1/4"
1-1/4"
1-1/4"

1200
1200
1200

6 HOLE
8 HOLE
4 HOLE

1/2"
1/2"
3/8"

13-1/2"
14-7/8"
12-1/8"

9"
10-3/8"
7-5/8"

4-1/2"
4-1/2"
4-1/2"

5-1/2"
6-3/4"
4"

2-3/4"
2-3/4"
2-3/4"

2-5/8"
2-5/8"
2-5/8"

3-1/2"
3-1/2"
3-1/2"

3-15/16"
3-15/16"
3-15/16"

4-7/16"
4-7/16"
4-7/16"

7/16"
7/16"
7/16"

4-5/8" B.C.
4-5/8" B.C.
4-5/8" B.C.

62-6053
62-6055
62-6057

1-1/4"
1-1/2"
1-1/2"

1200
1600
1600

6 HOLE
H
6 HOLE

1/2"
1/2"
1/2"

13-1/2"
12-1/8"
13-1/2"

9"
7-5/8"
9"

4-1/2"
4-1/2"
4-1/2"

5-1/2"
4"
5-1/2"

2-3/4"
2-3/4"
2-3/4"

2-5/8"
3-1/16"
3-1/16"

3-1/2"
3-1/2"
3-1/2"

3-15/16"
3-15/16"
3-15/16"

4-7/16"
4-7/16"
4-7/16"

7/16"
7/16"
7/16"

4-5/8" B.C.
4-5/8" B.C.
4-5/8" B.C.

62-6059
62-6061
62-6065

1-1/2"
1-1/2"
1-3/4"

1600
1600
2400

8 HOLE
4 HOLE
4 HOLE

1/2"
1/2"
1/2"

14-7/8"
13-5/8"
13-5/8"

10-3/8"
8-7/8"
8-7/8"

4-1/2"
4-3/4"
4-3/4"

6-3/4"
5-3/8"
5-3/8"

2-3/4"
3"
3"

3-1/16"
3-7/8"
3-7/8"

3-1/2"
4-1/2"
4-1/2"

3-15/16"
4-15/16"
4-15/16"

4-7/16"
5-9/16"
5-9/16"

7/16"
9/16"
9/16"

4-5/8" B.C.
6" B.C.
6" B.C.

62-6067
62-6069
62-6075

1-3/4"
1-3/4"
2"

2400
2400
2600

6 HOLE
8 HOLE
4 HOLE

1/2"
1/2"
1/2"

14"
15-1/2"
13-5/8"

9-1/4"
10-3/4"
8-7/8"

4-3/4"
4-3/4"
4-3/4"

5-3/4"
7-1/8"
5-3/8"

3"
3"
3"

3-7/8"
3-7/8"
3-7/8"

4-1/2"
4-1/2"
4-1/2"

4-15/16"
4-15/16"
4-15/16"

5-9/16"
5-9/16"
5-9/16"

9/16"
9/16"
9/16"

6" B.C,
6" B.C.
6" B.C.

62-6077
62-6079

2"
2"

2600
2600

6 HOLE
8 HOLE

1/2"
1/2"

14"
5-1/2"

9-1/4"
10-3/4"

4-3/4"
4-3/4"

5-3/4"
7-1/8"

3"
3"

3-7/8"
3-7/8"

4-1/2"
4-1/2"

4-15/16"
4-15/16"

5-9/16"
5-9/16"

9/16"
9/16"

6" B.C..
6" B.C.
